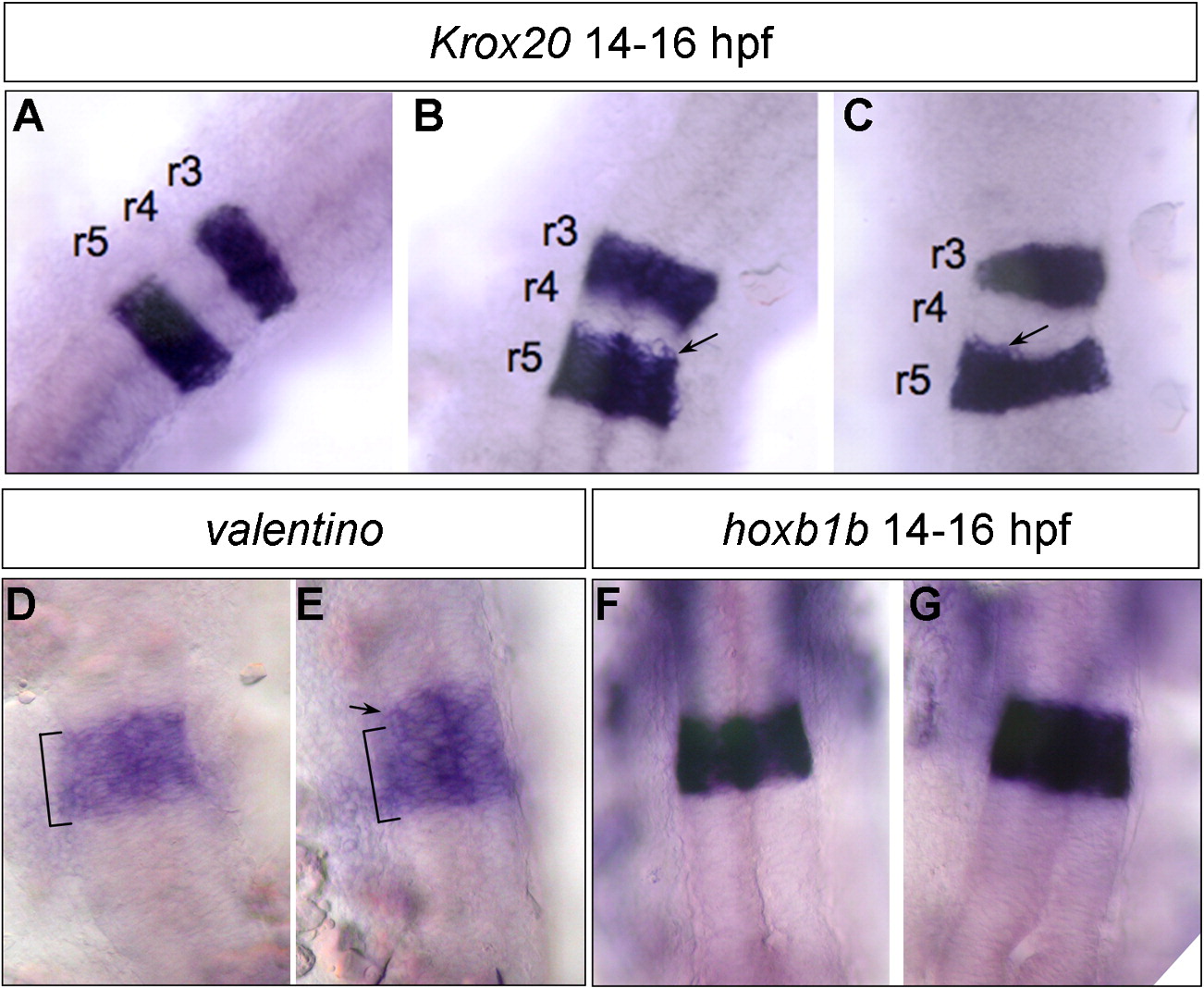

Fig. S3 Normal rhombomere specification in cxcr7b-MO. Segmentation pattern of the hindbrain was examined with Krox20 (A–C), valentino (D–E) and hoxb1a (F–G). In most cases expression of the segmentation genes was normal, except in 30% of the injected embryos where the rhombomeric limits were irregular with a mild extension in Krox20 (B–C, arrows) and val (E, arrow) domains (n = 150). hoxb1a expression was not detectably affected (compare F and G) (n = 230).
