Figure Caption

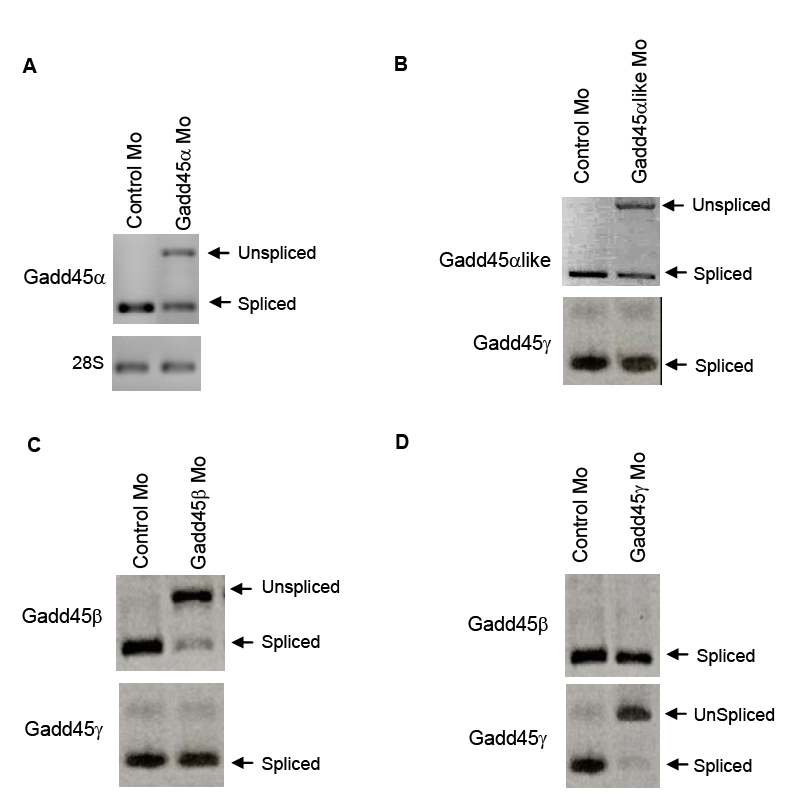

Fig. S6
Morpholino knockdown efficacy of Gadd45 family members
Knockdown efficiencies of morpholinos against Gadd45α (4pg) (A), Gadd45αlike (4pg) (B), Gadd45β (2pg) (C), and Gadd45γ (2pg) (D) was assessed at 80% epiboly in cDNA made from total RNA obtained from wild type embryos or ones injected with respective morpholinos. Spliced and unspliced DNA length is shown. 28S (A), Gadd45γ (B-C) and Gadd45β (D) were used as a loading controls. Panels A, B, and D contain lanes cut and pasted next to each other from the same gel.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Reprinted from Cell, 135(7), Rai, K., Huggins, I.J., James, S.R., Karpf, A.R., Jones, D.A., and Cairns, B.R., DNA demethylation in zebrafish involves the coupling of a deaminase, a glycosylase, and gadd45, 1201-1212, Copyright (2008) with permission from Elsevier. Full text @ Cell
