Figure Caption

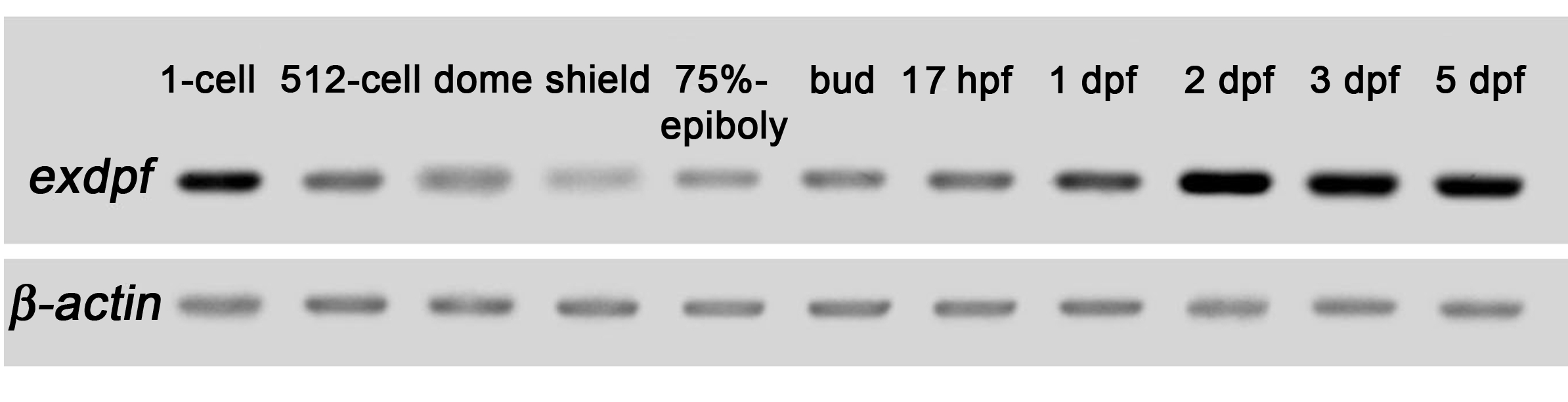

Fig. S2 RT-PCR Result of exdpf During Embryogenesis
Note exdpf can be detected at one-cell stage, indicating that the transcripts are maternally deposited into the eggs. Zygotic expression of exdpf starts at around shield stage and increases during subsequent embryogenesis. A strong level of exdpf expression can be detected at 2 dpf and lasts until 5 dpf, the longest time point of this analysis.
Figure Data
