ZFIN Image: Waxman et al., 2008, Fig. S1


Figure Caption

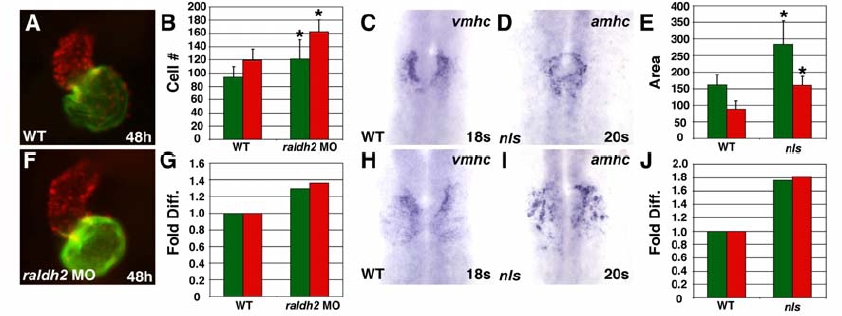

Fig. S1 The Numbers of atrial and Ventricular Cells Are Increased in raldh2 Morphants and neckless (nls/raldh2) Mutants
All views and graphs are as presented in Figure 1.
(A and B, F and G) raldh2 morphants exhibit increased atrial and ventricular cell number; see also Table S3. Asterisks indicate statistically significant differences relative to wild-type (p<0.01).
(C–E and H–J) nls mutants have increased expression of amhc and vmhc; see also Supplemental Table 4. Asterisks indicate statistically significant differences relative to wild-type (p<0.005). The phenotypes of raldh2 morphants and nls mutants are less dramatic than those observed in BMS-treated embryos (Figure 1), most likely because of limits on MO efficacy and the hypomorphic nature of the nls allele (Begemann et al., 2001).
