Fig. 1

ID
ZDB-IMAGE-081022-21
Genes
Source
Figures for García-Lecea et al., 2008
Figure Caption

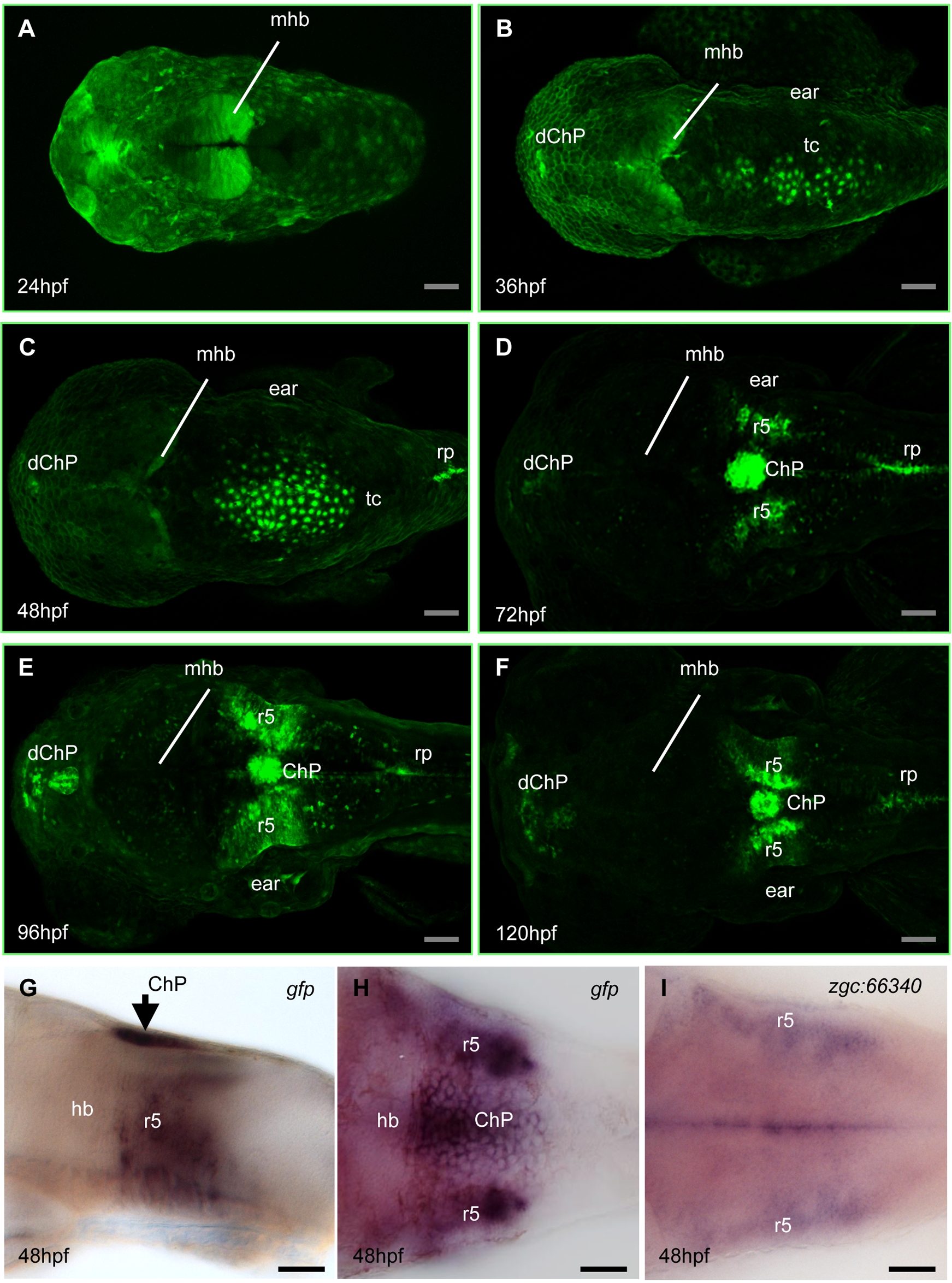

Fig. 1 Formation of the fourth ventricle choroid plexus in Gateways zebrafish transgenics.
A, at 24hpf GFP expression was absent at the roof of fourth ventricle; B, at 36hpf GFP-positive cells are present at the dorsal midline of the roof of fourth ventricle; C, the number of GFP-positive cells increased, they are separated from the roof plate posteriorly; D, ChP has formed at the dorsal midline at the ear level; E, F, ChP tightens. G, H, lateral and dorsal view of gfp expression pattern in transgenics. Compare that to i showing expression of zgc:66340 in dorsal view. A–F, dorsal view. Abbreviations: dChP – diencephalic ChP; ChP – choroid plexus of hindbrain, hb – hindbrain, mhb – midbrain-hindbrain boundary, r5 – rhombomere 5, rp – roof plate, tc – tela choroidea. In all figures scale bars = 50 μm unless otherwise indicated.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ PLoS One
