ZFIN Image: Yoshida et al., 2008, Fig. 1


Figure Caption

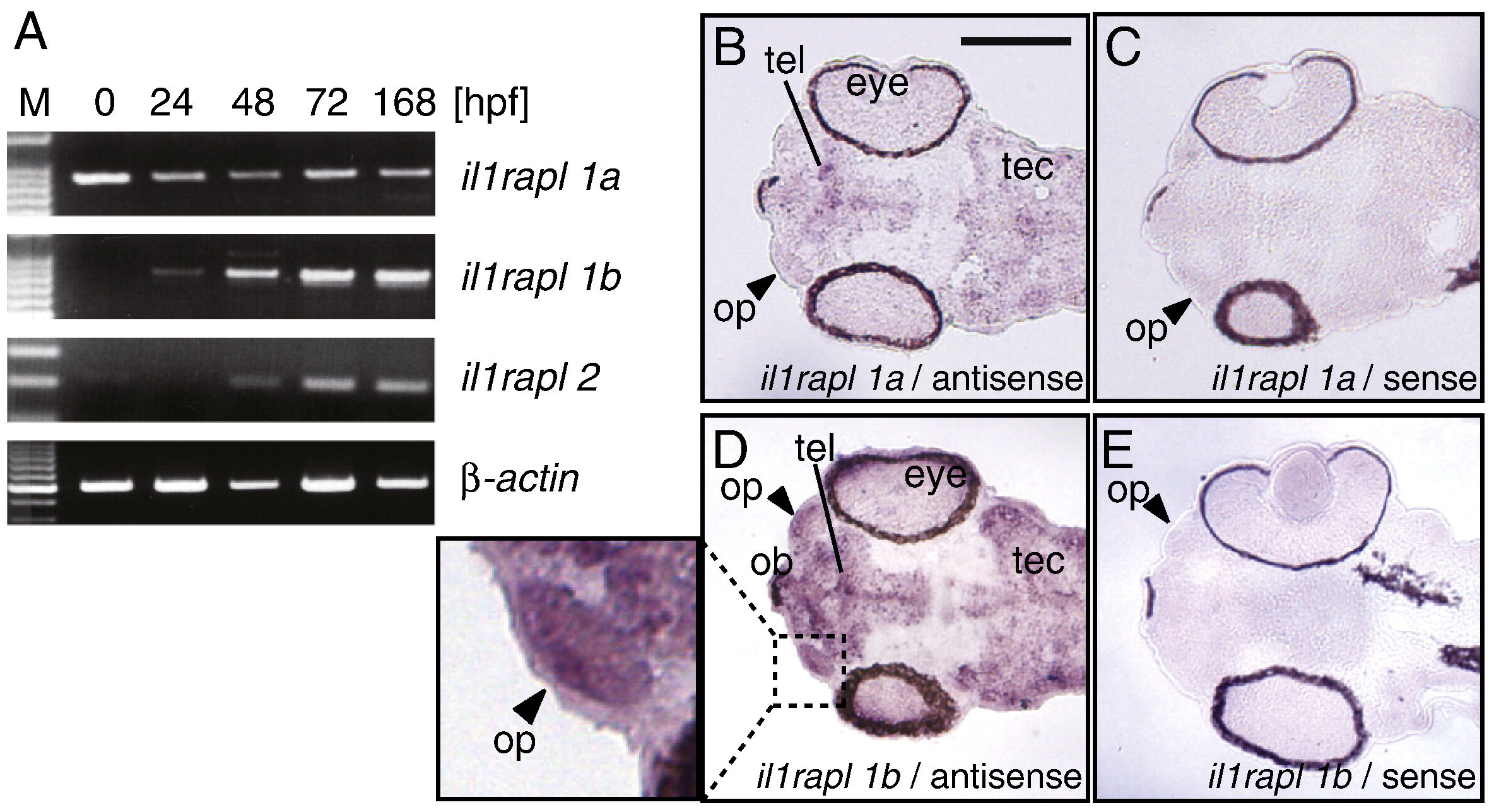

Fig. 1 Expression of zebrafish il1rapl genes. (A) Expression of zebrafish il1rapl1a, il1rapl1b and il1rapl2 mRNA in the 0 hpf, 24 hpf, 48 hpf and 72 hpf zebrafish embryos and 168 hpf larva estimated by RT-PCR. The sizes of il1rapl1a, il1rapl1b and il1rapl2 fragments were 825 bp, 828 bp and 211 bp, respectively. β-actin fragment of 490 bp served as a positive control. (B, C) Sections of 60 hpf embryos stained by in situ hybidization with DIG-labeled antisense (B) and sense (C) probes of the zebrafish il1rapl1a mRNA. (D, E) Sections of 60 hpf embryos stained by in situ hybidization with DIG-labeled antisense (D) and sense (E) probes of the zebrafish il1rapl1b mRNA. The dashed region in (D) including the olfactory placode is magnified on the left. eye, eye; ob, olfactory bulb; op, olfactory placode; tec, tectum; tel, telencephalon. Arrowheads point olfactory placodes. Scale bar, 100 μm.

Figure Data

Expression / Labeling details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Molecular and cellular neurosciences, 39(2), Yoshida, T., and Mishina, M., Zebrafish orthologue of mental retardation protein IL1RAPL1 regulates presynaptic differentiation, 218-228, Copyright (2008) with permission from Elsevier. Full text @ Mol. Cell Neurosci.
