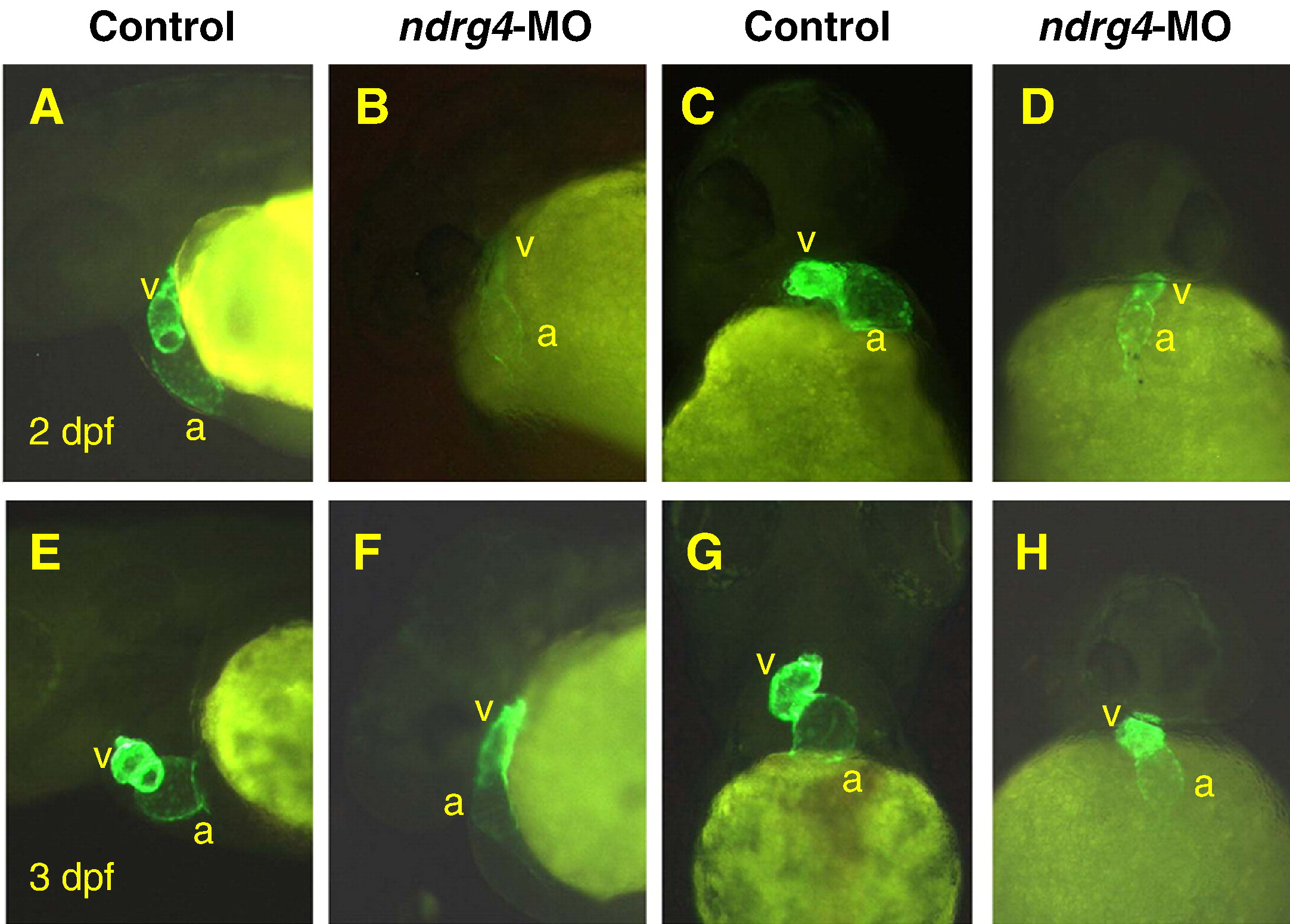

Fig. 5 Attenuation of Ndrg4 results in early looping abnormalities. The cmlc2-driven GFP is expressed in cardiomyocytes of transgenic Tg(cmlc2:gfp) embryos. At 2 dpf (A–D) and 3 dpf (E–H), compared to the clearly looped heart of uninjected Tg(cmlc2:gfp) embryos (A, C, E, G), the heart of ndrg4 morphant (B, D, F, H) remained central and linear in a tubular structure. (A, B, E, F), Lateral views with anterior towards the left; (C, D, G, H), frontal views with anterior towards the top. a, atrium; v, ventricle.
