Fig. 2

ID
ZDB-IMAGE-080516-16
Genes
Antibodies
Source
Figures for Shin et al., 2008
Figure Caption

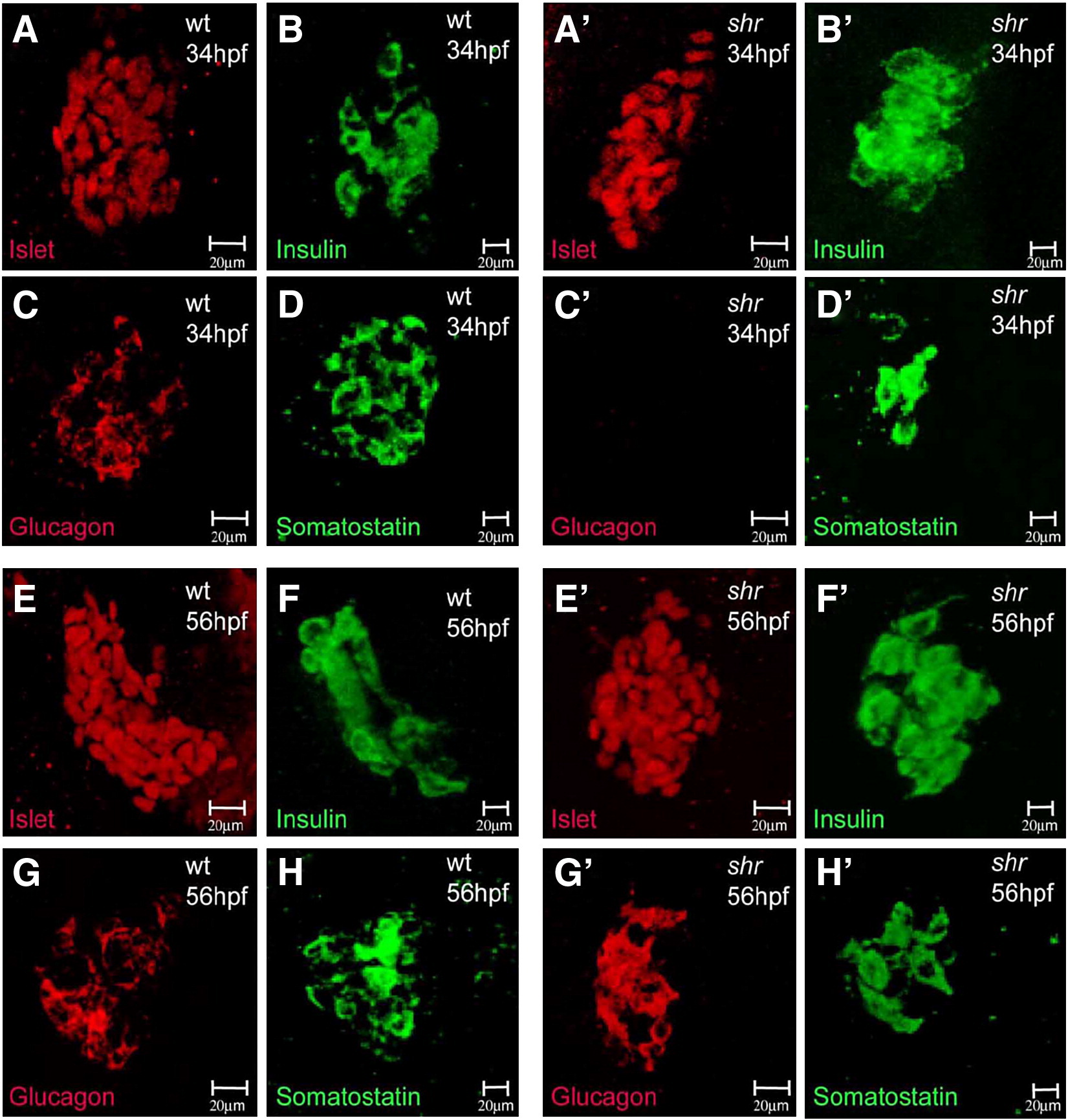

Fig. 2 shr is required for dorsal pancreas development. Confocal projections of wild-type and shrs435 mutant embryos at 34 (A–D′) and 56 (E–H′) hpf stained for Islet (red, A, A′, E, E′), Insulin (green, B, B′, F, F′), Glucagon (red, C, C′, G, G′), and Somatostatin (green, D, D′, H, H′) expression. The pancreatic expression of Islet and Insulin appears unaffected in shrs435 mutants at 34 and 56 hpf (A′, B′, E′, F′). The expression of Somatostatin appears reduced (D′) and that of Glucagon almost completely absent (C′) in shrs435 mutants at 34 hpf, but restored to wild-type levels by 56 hpf (G′, H′). All images are ventral views, anterior to the top.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 317(2), Shin, C.H., Chung, W.S., Hong, S.K., Ober, E.A., Verkade, H., Field, H.A., Huisken, J., and Stainier, D.Y., Multiple roles for Med12 in vertebrate endoderm development, 467-479, Copyright (2008) with permission from Elsevier. Full text @ Dev. Biol.
