Fig. 6

ID
ZDB-IMAGE-080502-5
Source
Figures for Kreiling et al., 2008
Figure Caption

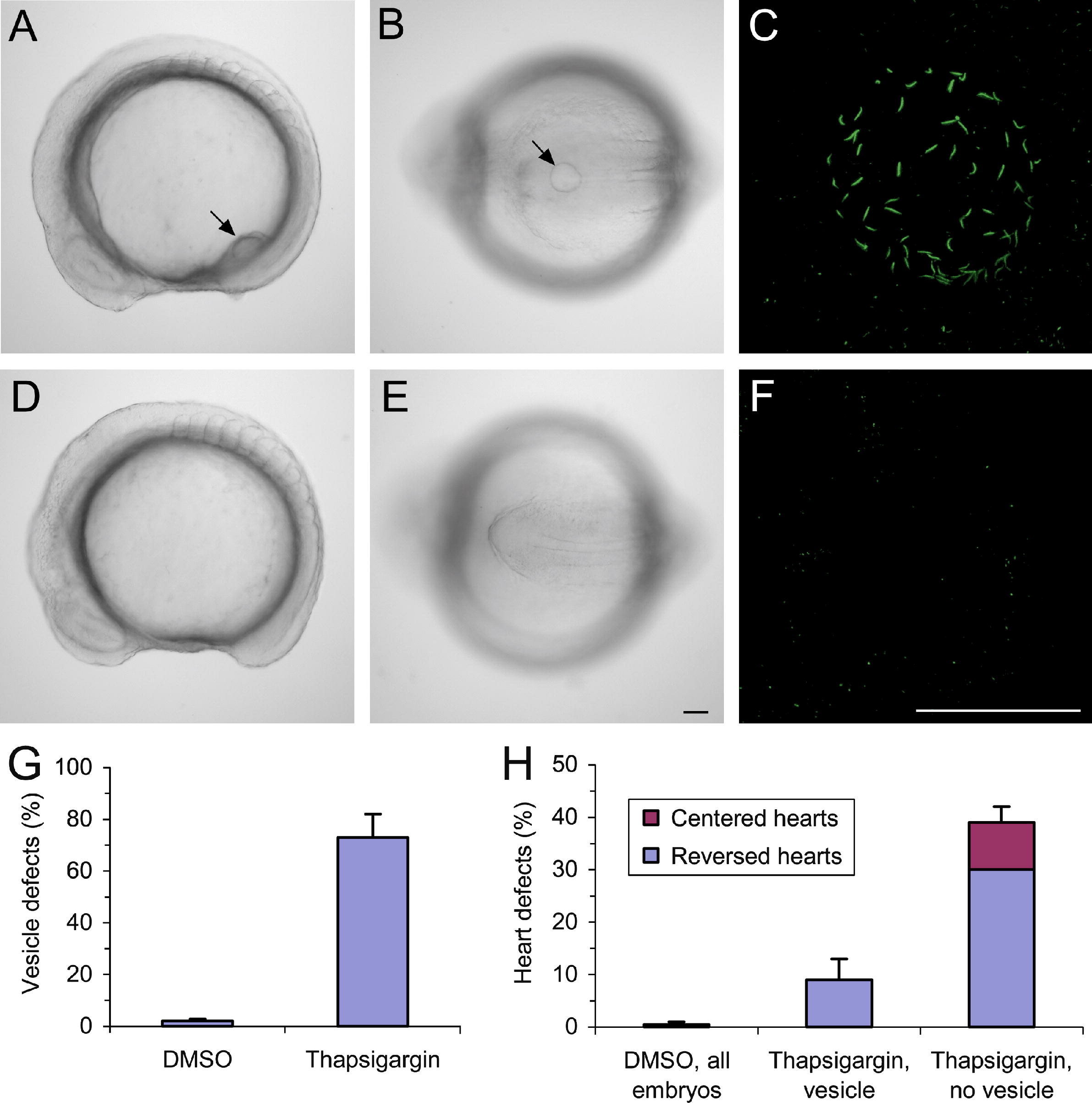

Fig. 6 Ca2+ manipulation affects the formation of Kupffer’s vesicle. (A and B) Control embryo treated with 1 μl/ml DMSO from 6 to 8 hpf, shown in lateral view (A) and posterior view (B) at the 9 somite stage (13 hpf). The arrows indicate the position of Kupffer’s vesicle. (C) The cilia in Kupffer’s vesicle were labeled by immunocytochemistry using an acetylated tubulin antibody. The vesicle shown in C is from a DMSO-treated control embryo and contains 70 cilia. (D and E) Embryo treated with 0.5 μM thapsigargin from 6 to 8 hpf and shown in a side view (D) and posterior view (E) at the 9 somite stage. Kupffer’s vesicle is absent. (F) Thapsigargin-treated embryo without a vesicle, which fails to develop cilia in the tail region. (G) Bar graph showing the number of embryos without a vesicle. (H) Embryos containing a vesicle were separated from embryos without a vesicle at 12–13 hpf and the two groups were examined for heart laterality defects at 50 hpf. Scale bars are 50 μm.

Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Mechanisms of Development, 125(5-6), Kreiling, J.A., Balantac, Z.L., Crawford, A.R., Ren, Y., Toure, J., Zchut, S., Kochilas, L., and Creton, R., Suppression of the endoplasmic reticulum calcium pump during zebrafish gastrulation affects left-right asymmetry of the heart and brain, 396-410, Copyright (2008) with permission from Elsevier. Full text @ Mech. Dev.
