Fig. 10

ID
ZDB-IMAGE-080411-30
Genes
Source
Figures for Pagnon-Minot et al., 2008
Figure Caption

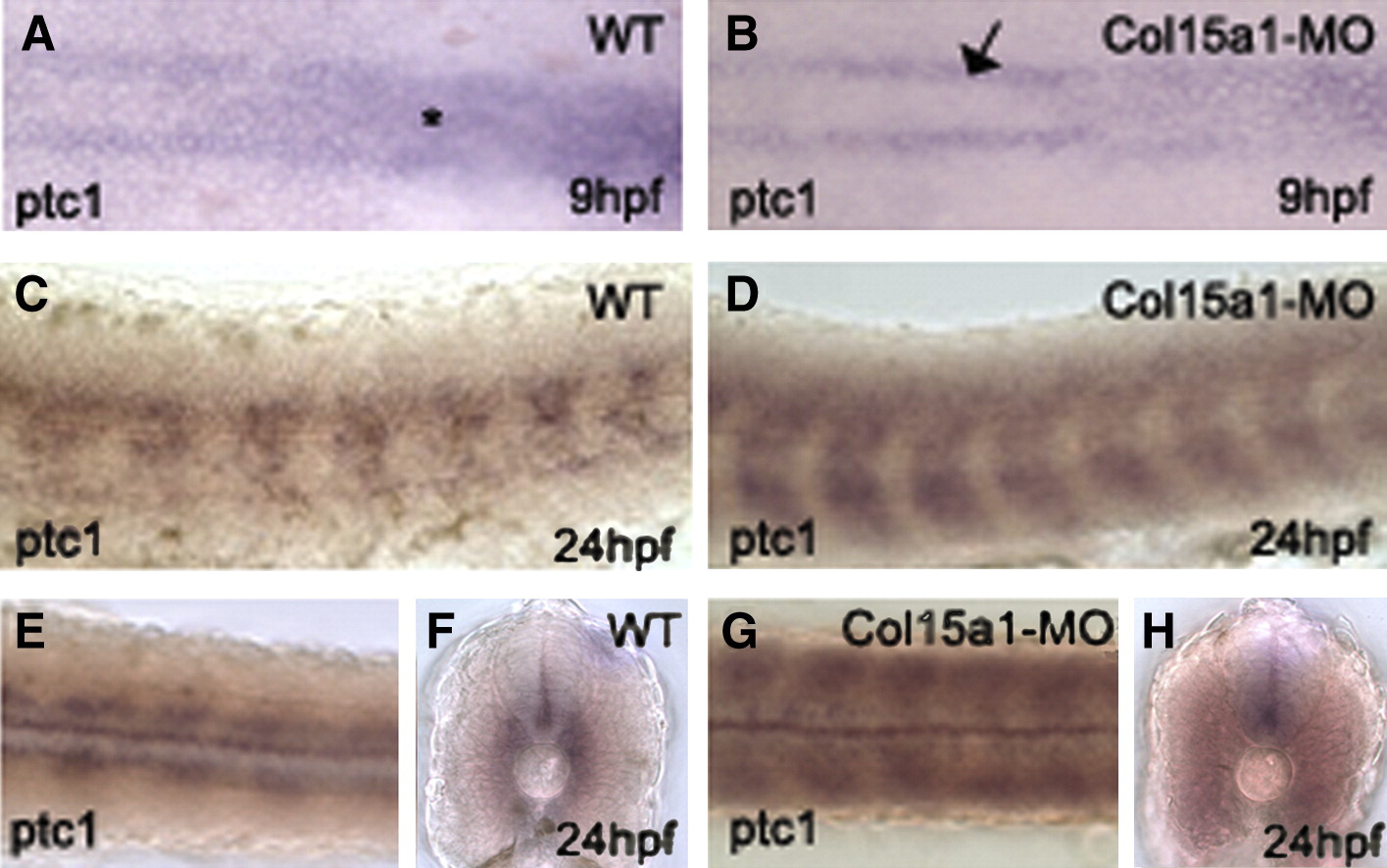

Fig. 10 Ptc expression pattern in Col15a1-MO (B, D, G, H) compared to the wild-type (A, C, E, F) embryos at 9 hpf (A, B) and 24 hpf (C–H). (A, B) Similar ptc1 expression is detected at 9 hpf in adaxial cells (arrow) and neural plate (asterisk) of wild-type (A) and Col15a1-MO (B) embryos. (C, E, F) Ptc1 expression in myotomes of 24 hpf wild-type embryos in lateral (C), and dorsal views (E), and in cross-sections of the trunk region (F). (D, G, H) Expansion of the ptc1 expression domain in the myotomes of Col15a1-MO embryos at 24 hpf. (D) Lateral view, (G) Dorsal view, (H) Cross-section. Magnification: A, B: x 200; C–E, G: x 400; F, H: x 500.
