Fig. 1

ID
ZDB-IMAGE-080326-46
Genes
Source
Figures for Hegde et al., 2008
Figure Caption

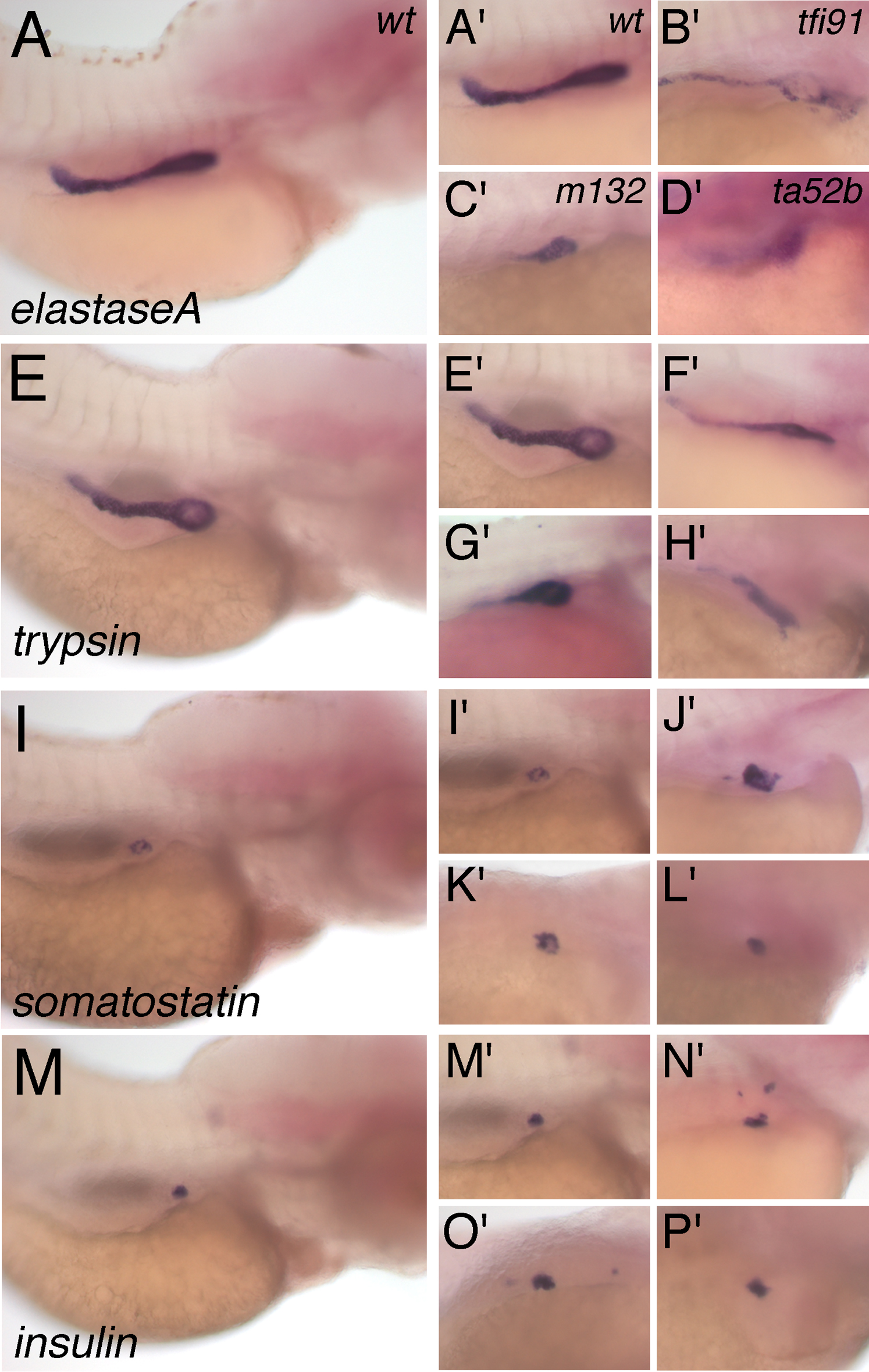

Fig. 1 Expression pattern of pancreas-specific genes at 96 hpf in mib mutants and their wild type (wt) siblings. The RNA probes used for in situ hybridization are (A and A′–D′) elastaseA, (E and E′–H′) trypsin, (I and I′–L′) somatostatin and (M and M′–P2) insulin. The genotypes are (A, A′, E, E′, I, I′, M and M′) wt, (B′, F′, J′ and N′) mibtfi91, (C′, G′, K′ and O2) mibm132 and (D′, H′, L′ and P′) mibta52b. A′, E′, I′ and M′ are cropped from A, E, I and M, respectively. All panels are lateral views and anterior to the right.
