Fig. S1

ID: ZDB-IMAGE-080211-41
Publication: Lyons et al., 2008 - KBP is essential for axonal structure, outgrowth and maintenance in zebrafish, providing insight into the cellular basis of Goldberg-Shprintzen syndrome
All Figures: Figures for Lyons et al., 2008


Figure Caption

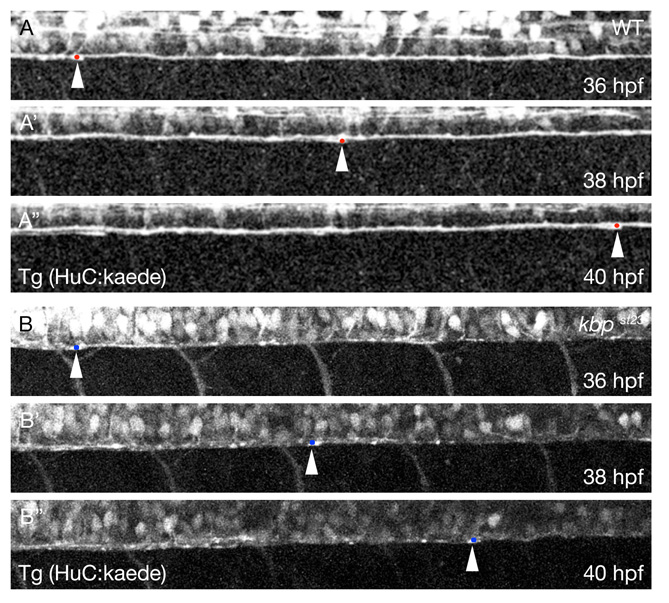

Fig. S1 KBP regulates the speed of axonal outgrowth in the CNS. (A-A″) Lateral views from a time-lapse series of the ventral spinal cord of a wild-type embryo with axons labeled by the Tg(HuC:kaede) transgene at 36 (A), 38 (A′) and 40 hpf (A″). Anterior is towards the left and dorsal is towards the top. The arrowheads and red dots indicate the posterior-most axons. (B-B″) Lateral views from a time-lapse series of the ventral spinal cord of a kbp^st23 mutant embryo with axons labeled by the Tg(HuC:kaede) transgene at 36 (B), 38 (B′) and 40 hpf (B″). Anterior is towards the left and dorsal is towards the top. The arrowheads and blue dots indicate the posteriormost axons.
