ZFIN Image: Sato et al., 2006, Fig. 1


Figure Caption

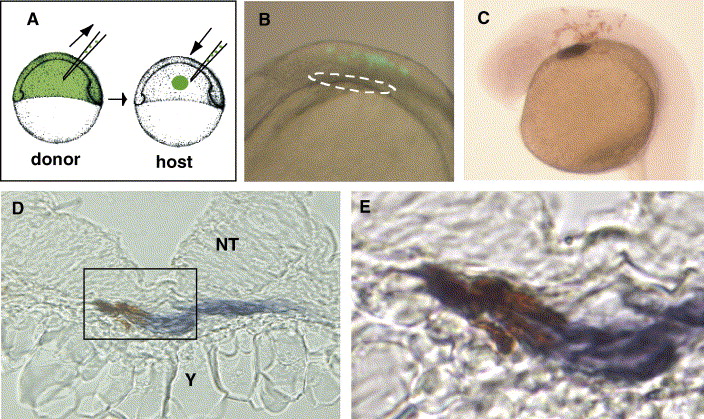

Fig. 1 Neural crest cells migrate to the primary heart field and express cmlc2. (A) Transplantation strategy. At the shield stage, 10–50 prospective neural crest cells were transplanted from fluorescein dextran donors into the orthotopic region of hosts. (B) 8 SS embryo, DIC and epi-fluorescent (lateral view, anterior at left, dorsal at top). Lineage-labeled cells (green) were in neural crest and neural tube at hindbrain level, but not in anterior LPM (white circle). (C) 26 SS embryo, lineage-labeled cells (anti-fluorescein antibody, brown) and cardiomyocytes (cmlc2, purple) were detected. (D) Transverse section through the primary heart field of 26 SS embryo with lineage-labeled neural crest cells (brown) expressing cmlc2 (purple). NT = neural tube, Y = yolk. (E) Magnified image of box in panel D.

Figure Data

Expression / Labeling details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 298(1), Sato, M., Tsai, H.J., and Yost, H.J., Semaphorin3D regulates invasion of cardiac neural crest cells into the primary heart field, 12-21, Copyright (2006) with permission from Elsevier. Full text @ Dev. Biol.
