ZFIN Image: Yu et al., 2005, Fig. 3


Figure Caption

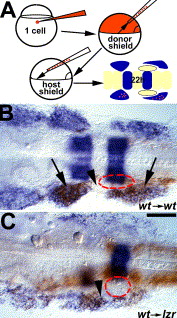

Fig. 3 lzr/pbx4 functions non-cell autonomously to control cranial NCC migration. (A) Schematic of the approach for generating cranial NCC mosaics. Donor-derived cells are brown, dlx2 and krox20 expression are in blue. Red dash-lines circle the position of the OV in B-C. (B) In control experiments, wild-type donor cells migrate normally into the second and third cranial NC streams of the pharyngeal arches (arrows) without occupying the cranial NC-free zone (arrowhead) in a wild-type host embryo. (C) In contrast, wild-type donor cells are seen in the normally cranial NC-free zone (arrowhead) after transplantation into a lzr/pbx4 mutant host. Scale bar: 40 μm in B–C.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 280(2), Yu, H.H., and Moens, C.B., Semaphorin signaling guides cranial neural crest cell migration in zebrafish, 373-385, Copyright (2005) with permission from Elsevier. Full text @ Dev. Biol.
