Fig. 7

ID
ZDB-IMAGE-070801-16
Genes
Source
Figures for Dworkin et al., 2007
Figure Caption

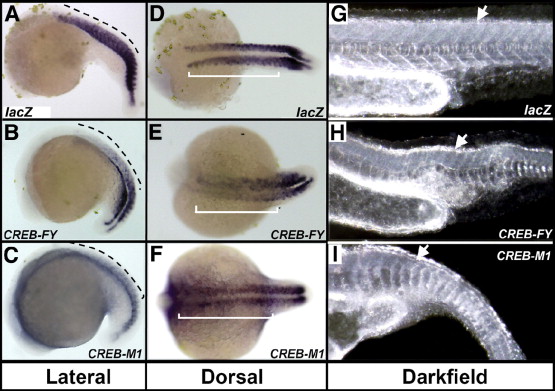

Fig. 7 Distribution of myoD RNA in the trunk and tail of injected embryos is disrupted in embryos with perturbed CREB function. Embryos injected with lacZ (A, D), CREB-FY (B, E) or CREB-M1 (C, F) were stained by WISH during late somitogenesis (22ā€“24 somite stage). CREB-FY injected embryos exhibit less MyoD staining in the trunk somites, 1ā€“15, (dashed line, B; bar, E) than do CREB-M1 (C, F) or control (A, D) embryos. MyoD staining in the posterior-most 7ā€“9 (tail) somites is relatively unchanged. Darkfield microscopy shows somite morphogenesis (arrows, Gā€“I) is varyingly disrupted in both CREB-FY (H) and CREB M1 (I) injected embryos relative to controls (G), which display regularly-spaced, chevron-shaped somites. CREB-FY injected fish display irregularly spaced and sized somites, although the basic chevron-shape is retained (H). CREB-M1 injected fish show additional loss of somite structure and shape (I; note U-shaped somites).

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 307(1), Dworkin, S., Heath, J.K., Dejong-Curtain, T.A., Hogan, B.M., Lieschke, G.J., Malaterre, J., Ramsay, R.G., and Mantamadiotis, T., CREB activity modulates neural cell proliferation, midbrain-hindbrain organization and patterning in zebrafish, 127-141, Copyright (2007) with permission from Elsevier. Full text @ Dev. Biol.
