ZFIN Image: Jopling et al., 2007, Fig. 6


Figure Caption

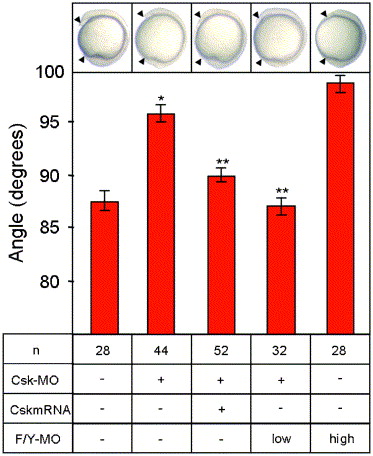

Fig. 6 Csk acts upstream of Fyn and Yes in gastrulation cell movements. The Csk-MO (5 ng) was injected alone or together with human csk mRNA (150 pg) or low levels of Fyn/Yes-MO (0.125 ng each, low). As a control, high levels of Fyn- and Yes-MOs that induce CE defects were injected (5 ng each, high). The angle between the most anterior and posterior embryonic structure was determined at the 1-somite stage in at least 20 embryos and the average angle is depicted here in degrees. Two tailed student t-tests indicate a significant increase in the angle after injection of Csk-MO alone (P < 0.001, single asterisk) and a significant decrease in the angle after co-injection of csk mRNA or Fyn/Yes-MO (P < 0.001, double asterisk).

Figure Data

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Mechanisms of Development, 124(2), Jopling, C., and den Hertog, J., Essential role for Csk upstream of Fyn and Yes in zebrafish gastrulation, 129-136, Copyright (2007) with permission from Elsevier. Full text @ Mech. Dev.
