Figure Caption

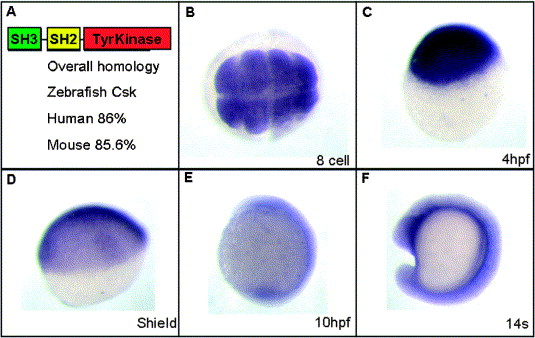

Fig. 1 Csk is ubiquitously expressed in early zebrafish development. (A) Schematic representation of zebrafish Csk with one Src homology 3 (SH3) domain and one Src homology 2 domain to the N-terminal side of the protein-tyrosine kinase domain. The overall sequence identity with human and mouse Csk is indicated. (B–F) In situ hybridization with a Csk-specific antisense probe at various stages of development: (B) 8 cell-stage; (C) 4 hpf; (D) shield stage; (E) 10 hpf and (F) 14 somite (14 s).
Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Reprinted from Mechanisms of Development, 124(2), Jopling, C., and den Hertog, J., Essential role for Csk upstream of Fyn and Yes in zebrafish gastrulation, 129-136, Copyright (2007) with permission from Elsevier. Full text @ Mech. Dev.
