Fig. 2
- ID
- ZDB-IMAGE-061226-8
- Genes
- Publication
- Ghiselli, 2006 - SMC3 knockdown triggers genomic instability and p53-dependent apoptosis in human and zebrafish cells
- All Figures
- Figures for Ghiselli, 2006
|

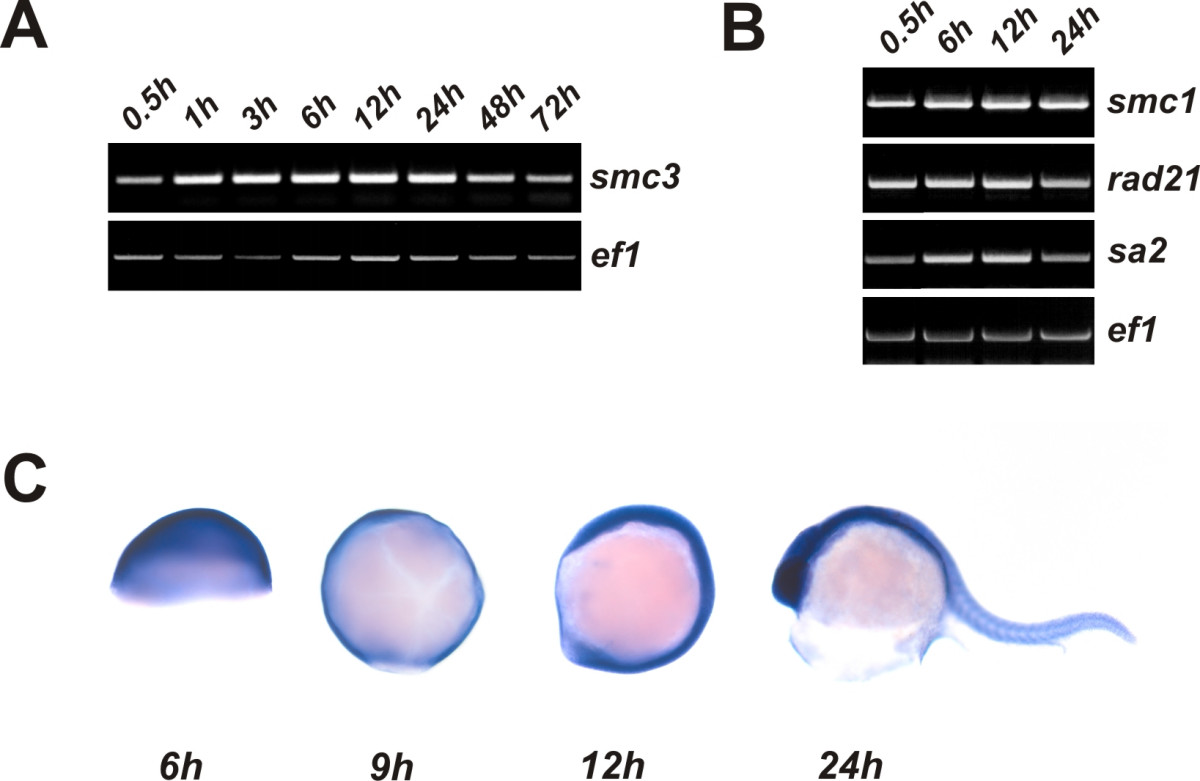

Fig. 2 Expression of zebrafish smc3 during embryogenesis. A) Semiquantitative RT-PCR analysis of smc3 transcript level in zebrafish embryos at different times during development. ef-1 transcript level, which is expressed throughout development, was used as internal control. B) Expression of constituents of the cohesin multimeric protein complex: zebrafish smc1, rad21 and sa2 transcripts were quantitated as described in panel A. C) Spatio-temporal expression of smc3 mRNA. Whole-mount mRNA in-situ hybridization was performed at the indicated developmental stages. Left-to-right: lateral view with the animal pole up of embryos at 50% epiboly (6 hpf), at 90% epiboly (9 hpf), at 3-somite stage (12 hpf), and at 24 hpf.
