FIGURE

FIGURE 5

ID

ZDB-FIG-260731-22

Publication

Gurberg et al., 2026 - Impaired Motor Function in a Zebrafish Stathmin-2 Knockout Model

Other Figures

All Figure Page

Back to All Figure Page

FIGURE 5

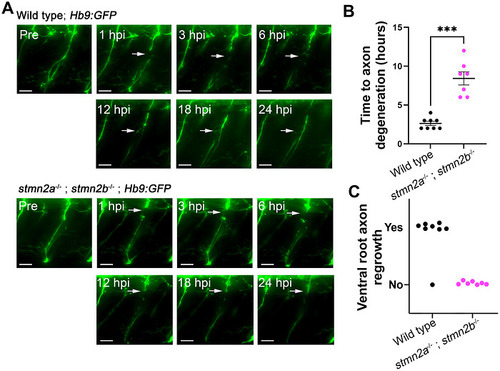

Delayed ventral root motor axon degeneration following axotomy in 2 dpf stmn2a^−/−; stmn2b^−/− zebrafish. (A) Example confocal images of ventral root motor axons of a wild type (top) expressing Tg[Hb9:GFP] and stmn2a^−/−; stmn2b^−/− zebrafish (bottom) expressing Tg[Hb9:GFP] over a 24 h period following injury (hpi). White arrows indicate location of axotomy. Scale bar represents 25 µm. (B) Quantification of the length of time it took for distal motor axon degeneration to occur. Axon degeneration time was significantly longer in stmn2a^−/−; stmn2b^−/− fish when compared to wild type zebrafish. Sample sizes are as follows: wild type, n = 8; stmn2a^−/−; and stmn2b^−/−, n = 7. Data points represent individual axon degeneration times from individual zebrafish with black bar representing the overall group mean ± standard error. A t‐test was used to make statistical comparisons. ***p < 0.001. (C) Tabulation of the number of ventral roots regrown at 24 hpi.

Expression Data

Gene:	GFP
Fish:	ml2Tg (TL) stmn2a^mg8/mg8; stmn2b^mg9/mg9; ml2Tg (TL)
Condition:	transection: axon: ventral root
Anatomical Term:	ventral root axon
Stage Range:	Long-pec to Pec-fin

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	stmn2a^mg8/mg8; stmn2b^mg9/mg9; ml2Tg (TL)
Condition:	transection: axon: ventral root
Observed In:	ventral root neuron projection regeneration
Stage Range:	Long-pec to Pec-fin

Phenotype Detail
