Figure 4

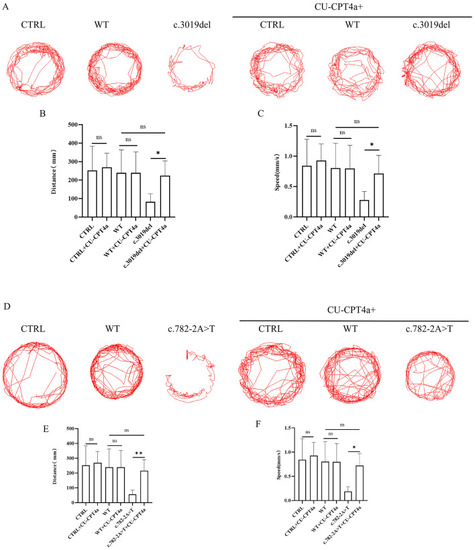

Behavioral assays of zebrafish larvae treated with CU-CPT 4a. (A, D) Representative locomotor tracking plots of CTRL, WT, c.3019del (A) or c.782-2A>T (D), and their respective CU-CPT 4a-treated groups at 120 hpf. (B, E) Quantification of total distance traveled by larvae (n = 10 per group) for CTRL, WT, c.3019del or c.782-2A>T, and CU-CPT 4a-treated groups. (C, F) Quantification of swimming speed for the same groups. ANOVA was used to compare data among groups. Data are presented as mean ± SD. Statistical significance was determined using appropriate tests: ns, no significant difference; *P < 0.05; **P < 0.01.
