Figure 2

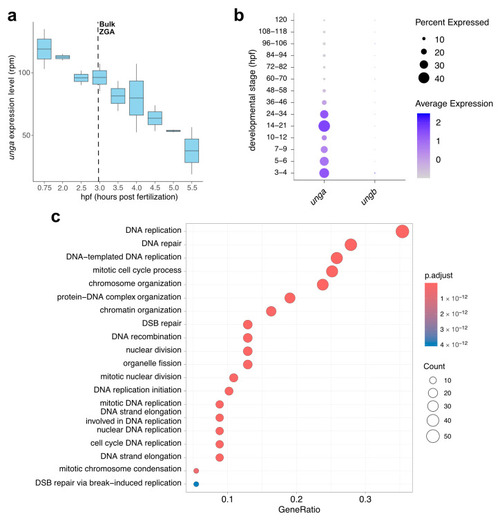

In silico analysis of the developmental expression of zebrafish UNG paralogs. (a) Expression dynamics of unga during the earliest stages of development show a gradual decrease in maternal transcript with no significant zygotic contribution after ZGA (Data from [46]). (b) The analysis of single-cell datasets also demonstrates the gradual clearance of maternal products, following a burst of unga expression during later stages of somatogenesis. During the same timeframe, ungb expression cannot be observed (Data from [48]). (c) GO analysis of genes that show significant co-expression with unga during early embryogenesis shows that the highest level of unga expression can be observed in actively dividing cell populations.
