FIGURE

FIGURE 4

ID

ZDB-FIG-250828-101

Publication

Malleret et al., 2025 - Mutation of Brain Aromatase Impairs Behavior and Neuroplasticity in Adult Zebrafish

Other Figures

All Figure Page

Back to All Figure Page

FIGURE 4

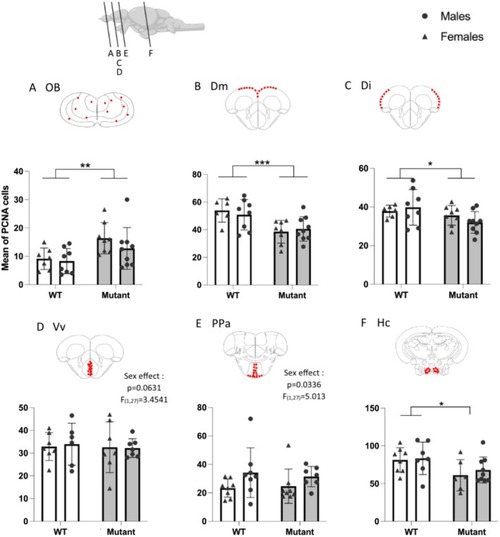

Quantification of the number of PCNA‐labeled cells in WT and mutant fish. (A) Olfactory bulbs (OB). (B) Medial zone of dorsal telencephalic area (Dm). (C) Lateral zone of dorsal telencephalic area (Di). (D) Ventral nucleus of ventral telencephalic area (Vv). (E) Parvocellular preoptic nucleus (PPa). (F) Caudal zone of periventricular hypothalamus (Hc). Red dots on schematic frontal sections indicate quantified areas. Mean ± SEM, *p < 0.05; **p < 0.001; ***p < 0.0001 versus WT group.
