Fig. 4

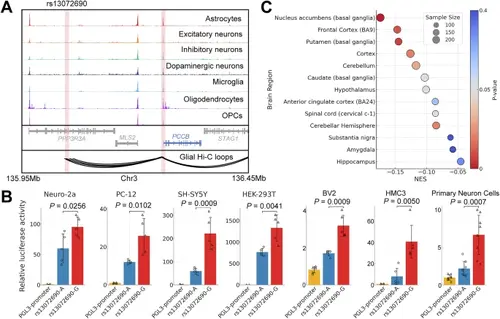

SNP rs13072690 functions as a biased allelic enhancer regulating PCCB expression.A This diagram illustrates how the biased allelic enhancer SNP (rs13072690) potentially regulates the expression of the distant gene PCCB. The aggregated single-cell ATAC-seq (scATAC-seq) tracks display chromatin accessibility signals from all cells of the specified cell type, while Hi-C loop data derived from microglia cells show the physical interactions between rs13072690 and the PCCB promoter. B Results from the dual-luciferase reporter assay demonstrate the biased allelic enhancer activity of rs13072690, confirming its functional impact on gene regulation. Bars represent the mean ± SEM. C A comparison of brain tissue eQTLs from GTEx (V8) shows the association between rs13072690 and PCCB expression across various brain regions.
