Fig. 5

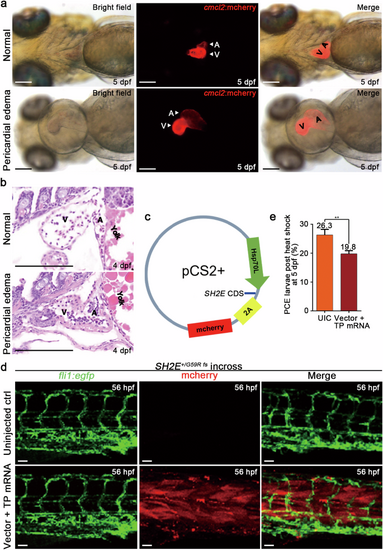

a The SH2EG59R fs/G59R fs embryos with Tg(cmcl2:mcherrry) background developed dilated atrium compared to those with normal cardiac morphology (SH2E+/+ or SH2E+/G59R fs) from the same SH2E+/G59R fs incross at 5 dpf. V, ventricle, A, atrium. b The SH2EG59R fs/G59R fs embryos developed thickened ventricle compared to those with normal cardiac morphology (SH2E+/+ or SH2E+/G59R fs) derived from the same SH2E+/G59R fs incross at 4 dpf. V, ventricle, A, atrium. c An inducible SH2E overexpression system driven by Hsp70L was constructed. d The Tg(fli1:egfp) background SH2E+/G59R fs incross embryos injected with SH2E overexpression plasmids were heat shocked at 48 hpf. 8 h later (56 hpf), ubiquitously expressed red fluorescent could be observed in the trunk. TP, transposase. e Inducible overexpression of SH2E resulted in stable reduction of PCE by about 6% in SH2E+/G59R fs incross at 5 dpf. UIC, uninjected control; TP, transposase; n = 3; **P < 0.01 compared with uninjected control. For (a, b, d), scale bars = 100 μm.
