Fig. 7

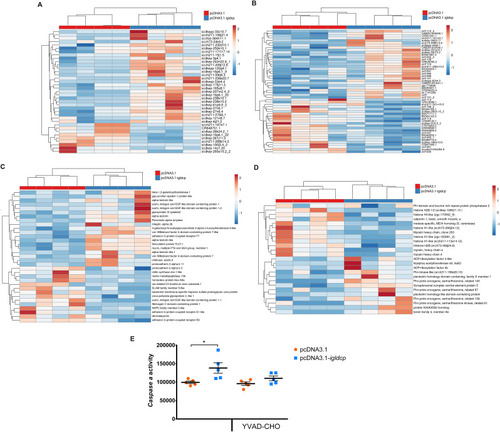

Heatmaps representing the expression of genes involved in different processes modulated by Igldcp in zebrafish larvae and the modulation of caspase a activity. The heatmaps were constructed with the TPM values of the DEGs A) with homology to NACHT, LRR and PYD domain-containing proteins (NLRP3/12-like), B) annotated as zinc-finger proteins, C) involved in cell‒cell adhesion and the extracellular matrix, and D) with a role in the cell cycle/chromatin/cytoskeleton. E) Measurement of caspase a activity in zebrafish larvae at 3 dpf after the injection of pcDNA3.1-igldcp or pcDNA3.1 at the one-cell embryo stage and incubated in the absence or presence of the caspase-1-specific inhibitor Ac-YVAD-CHO. The graphs represent the means ± SEMs of 5 independent biological replicates. Statistically significant differences are displayed as ∗ (0.01 < p < 0.05).
