Fig. 5

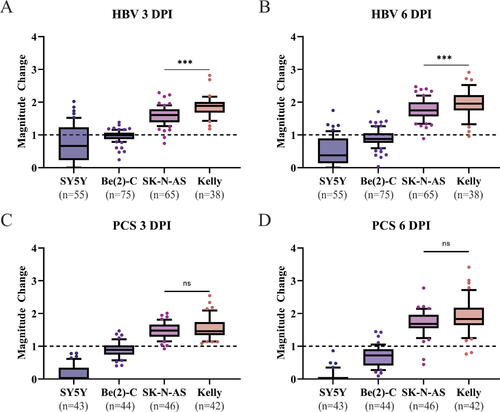

Kelly and SK-N-AS neuroblastoma cells engraft in the HBV and PCS of 48 hpf zebrafish while Be(2)-C tumor volume remains static and SY-5Y fails to engraft. (A, B) Comparison of tumor magnitude of change for four cell lines in the HBV at 3 DPI (A) and 6 DPI (B). (C, D) Comparison of tumor magnitude of change in the PCS for four cell lines at 3 DPI (C) and 6 DPI (D). Median magnitude of change at 3 and 6 DPI normalized to tumor volume at 1 DPI. ***p < 0.01, ns not significant. |
