Figure 7

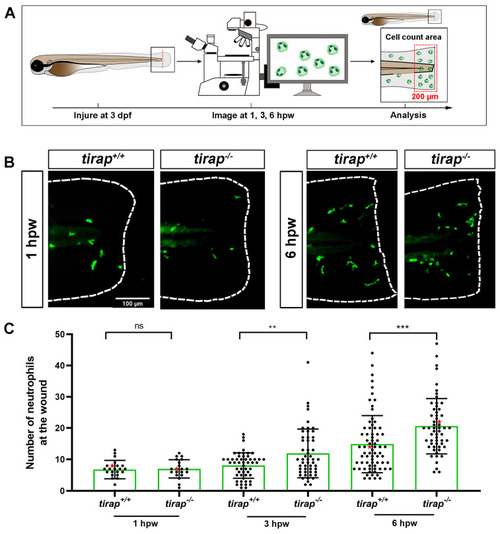

The number of recruited neutrophils upon tail wounding in zebrafish larvae. (A) Schematic representation of experiment. The wounded zebrafish larvae were imaged at designated times 1 hour post wounding (hpw), 3 hpw and 6 hpw. (B) Representative images of tirap^+/+ and tirap^-/- at 1 hpw and 6 hpw. Scale bar: 100 µm. (C) Number of neutrophils recruited to tail region upon tail wounding at 1, 3, 6 hpw. Red stars indicate the representative images shown in the panel B. The number of neutrophils at 1 hpw from one independent experiment for tirap^+/+ (n=23) and tirap^-/- (n=20), at 3 hpw for tirap^+/+ (n= 52) and tirap^-/- (n= 53) and at 6 hpw for tirap^+/+ (n=72) and tirap^-/- (n=57) are based on three independent experiments. Statistically significant difference was determined by nonparametric tests: Mann-Whitney and Kolmogorov-Smirnov, ns, non-significant; **, P < 0.01, ***, P < 0.001.
