Fig. 7

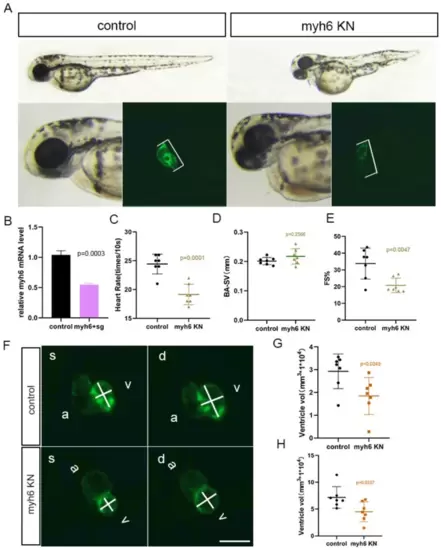

Phenotype of MYH6 cardiac malformation in a knocked down zebrafish. (A) the lateral body and enlarged heart of MYH6 zebrafish, control, n = 7, MYH6 KN, n = 7, white line, venous sinus-arterial distance. (B) Down-regulation efficiency of MYH6 gene. (C) heart rate (times/10 s), control, n = 10, MYH6 KN, n = 7. (D) BV-SA distance, control, n = 7, MYH6 KN, n = 7. (E) ventricular shortening fraction analysis, control, n = 7, MYH6 KN, n = 7. (F–H) the ventricle volume of zebrafish in systole and diastole, control, n = 7, MYH6 KN, n = 7, a atrium, v ventricle, s systole, d diastole; white line, the major and minor axes of the ventricles; bar = 200um.
