FIGURE

Fig. 4

ID

ZDB-FIG-240618-67

Publication

Chen et al., 2024 - gys1 regulates maternal glycogen reserve essential for embryonic development in zebrafish

Other Figures

(all 6)

All Figure Page

Back to All Figure Page

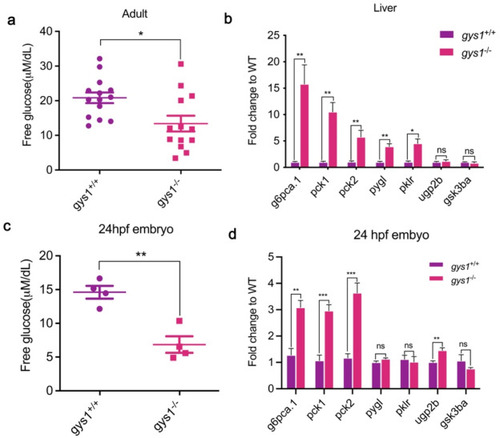

Fig. 4

Loss of gys1 impaired the glucose metabolism in zebrafish. (a and c) Plasma free glucose levels in 120 dpf F2 adults (gys1 WT n = 14, gys1 MT zebrafish n = 14) and F3 embryos at 24 hpf (gys1WT n = 4, gys1MT n = 4). (b and d) Loss of gys1 impaired the mRNA levels of glucose metabolism related genes in 120 dpf adult liver (n = 4) and embryos (n = 4), respectively. Unpaired t-test was used as the statistical analysis. Gluconeogenesis genes: g6pc1a.1 glucose-6-phosphatase catalytic subunit 1a; pck1 phosphoenolpyruvate carboxykinase 1; pck2 phosphoenolpyruvate carboxykinase 2 (mitochondrial), Glycolysis genes: pklr pyruvate kinase L/R; pygl phosphorylase, glycogen, liver; Glycogenolysis and glycogen synthesis genes: ugp2b uridine diphosphate glucose pyrophosphorylase; gsk3ba glycogen synthase kinase 3 beta. (*p < 0.05 **p < 0.01 ***p < 0.001 ****p < 0.0001 ns: no significant difference).

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Heliyon
