Fig. 1

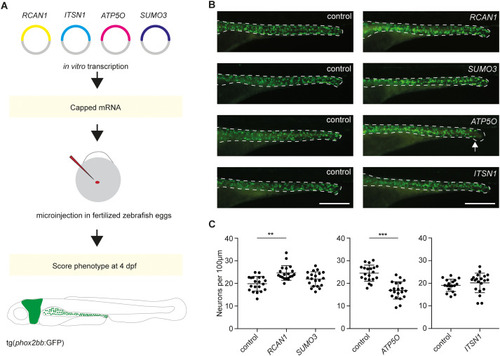

Systematic approach to assess the effects of overexpression of Hsa21 genes on ENS development in zebrafish. A. Schematic representation of the experimental setup. B. Representative images of control and larvae injected with human RNA. The arrow depicts the start of the intestine that lacks ENS cells. Scale bar represents 200 ?m. C. Quantification of the number of phox2bb:GFP+ enteric neurons per 100 ?m gut length. **p < 0.01, *** = p < 0.001. Each dot represents one animal; error bars represent standard deviation.
