Fig. 3

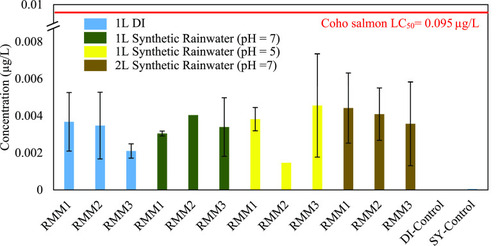

Comparison of 6PPD-quinone concentration in different simulations with compacted rubberized asphalt mixtures. DI-Control corresponds to double deionized water run through the entire setup without the compacted asphalt mixture, and SY-Control corresponds to synthetic rainwater run through the setup without a compacted asphalt mixture. Error bars represent standard deviation derived from duplicate experiments.
