Fig. S1

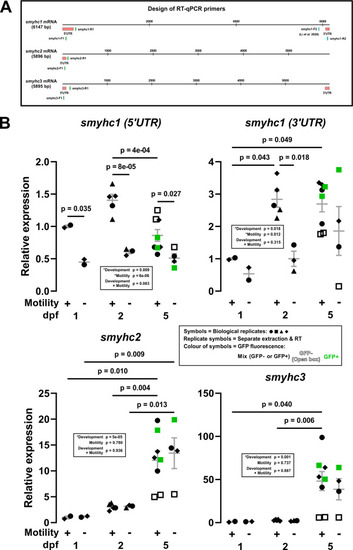

Nonsense-mediated decay of smyhc1 mRNA and lack of compensatory upregulation by smyhc2 or smyhc3 mRNAs. (A) Schematic showing the design of RT-qPCR primers for smyhc1-3 transcripts. To ensure specificity, primer sets were designed to target the 5′ or 3′ untranslated region (UTR) of the transcripts. (B) Expression of smyhc1-3 at 1, 2 and 5 dpf in siblings from smyhc1^kg179/+;Tg(smyhc1:EGFP)^i104/+ in-crosses that had been sorted at 1 dpf into motile and immotile groups. Total RNA prepared from 5 or 10 embryos/larvae per sample from two to four independent lays (represented by symbol shape). Some embryos/larvae were further sorted based on EGFP fluorescence (represented by symbol colour). Bars show mean ± SEM of all samples. Statistics are two-way ANOVA (Stage/Motility) with Bonferroni's post hoc test.
