Figure 7
- ID
- ZDB-FIG-230427-44
- Publication
- Hußmann et al., 2023 - Svep1 is a binding ligand of Tie1 and affects specific aspects of facial lymphatic development in a Vegfc-independent manner
- Other Figures
- All Figure Page
- Back to All Figure Page

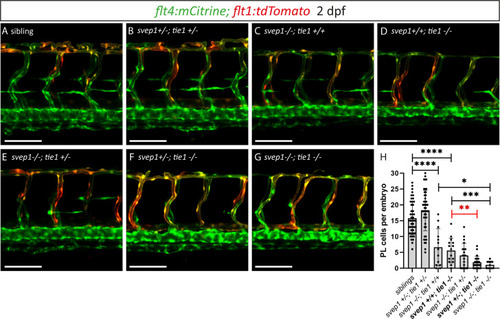

(A?G) Confocal images of blood and lymphatic vasculature in the trunk of 2-dpf-old embryos derived from svep1; tie1 double heterozygous fish, showing severely reduced PL numbers in svep1; tie1 double mutants and significant decrease of PL cell numbers in svep1+/?; tie1?/? compared to svep1+/+; tie1?/? (**p = 0.0012). (H) Quantification of PL cell numbers at 2 dpf using Mann?Whitney test (siblings: n = 45; svep1+/?; tie1+/?: n = 45; svep1?/?; tie1+/+: n = 13; svep1+/+; tie1?/?: n = 15; svep1?/?; tie1+/?: n = 20; svep1+/?; tie1?/?: n = 21; svep1?/?; tie1?/?: n = 11). Scale bar = 100 µm. Values are presented as means ± standard deviation (SD), ****p < 0.0001, ***p = 0.007, *p = 0.0163, ns = not significant. dpf, days post-fertilization; PL, parachordal lymphangioblast.
|
