Fig 5

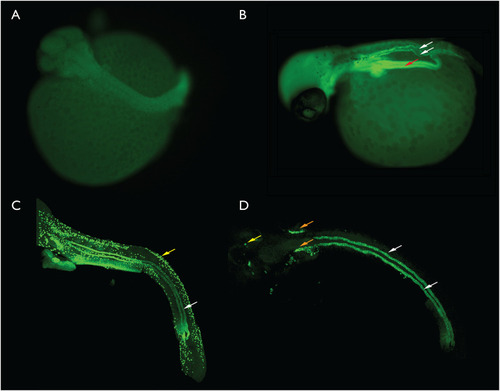

Fluorescent <italic toggle='yes'>in situ</italic> hybridization based labelling of atp1a expression in the developing kidney of bay pipefish embryos.

A. Late segmentation stage, no kidney is visible. B. Early pharyngula, paired kidney tubules are present and atp1a positive (white arrows). The gut tube is also fluorescent (red arrow). C. Scanning confocal generated image stack illustrating the kidney tubules (white arrow) and ionocytes (yellow arrow) in a late pharyngula embryo. D. Late pharyngula scanning confocal generated image stack. This stack was collected only in the plane of the kidney so most other labelled structures were not present. An unknown structure (orange arrows), possibly the developing gills and some ionocytes (yellow arrow) were also present in the image stack. For the purpose of scale, the eye in the early pharyngula in panel 5B is approximately 150 microns in diameter.
