Fig. 4

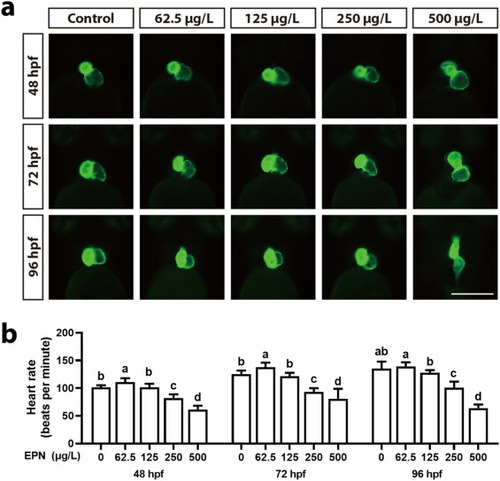

Effects on cardiac development of EPN-treated zebrafish embryos using transgenic zebrafish Tg(cmlc2:EGFP) embryos. (a), Heart shape in transgenic zebrafish embryos with or without treatment of EPN (500 μg/L) at 48, 72, and 96 hpf; (b), average heart rate per minute (n = 8) in transgenic zebrafish embryos with or without treatment of EPN (500 μg/L) at 48, 72, 96 hpf. The scale bar represents 200 µm. A different lowercase letter indicates a significant difference (p < 0.05, a > b > c > d). |
