FIGURE

Figure 6

ID

ZDB-FIG-211120-58

Publication

Rodríguez-Ortiz et al., 2021 - Mutants of the Zebrafish K⁺ Channel Hcn2b Exhibit Epileptic-like Behaviors

Other Figures

(all 7)

All Figure Page

Back to All Figure Page

Figure 6

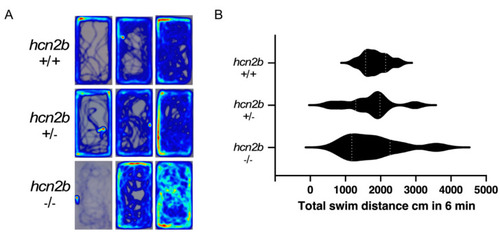

Novel tank diving assay. (A) Heat maps of three samples (low, medium and high activity) of the WT, hetero- and homozygous hcn2b zebrafish mutants in the swimming performance for six minutes in the novel tank. (B) Total swimming distances of the WT, hetero- and homozygous hcn2b zebrafish mutants. No statistical differences were observed between groups but hcn2b^−/− displayed heterogeneous values that corresponded with moments of hyperactivity and immobility. The heat maps and swimming distances were analyzed using EthoVisionXT (Noldus IT, Wageningen, The Netherlands).

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	hcn2b^{una101/una101}
Observed In:	swimming behavior
Stage:	Adult

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Int. J. Mol. Sci.
