Figure 3

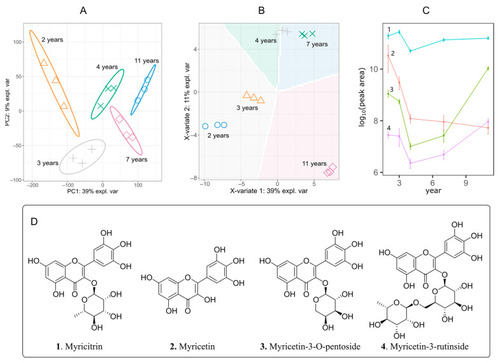

LC-MS/MS features of leaves from different years old trees (A. truncatum). (A) PCA analysis; (B) sPLS-DA analysis with multivariate prediction. (C) Content change trend of myricitrin-like components. 1-myricitrin; 2-myricetin; 3-myricetin-3-O-pentoside; 4-myricetin-3-rutinoside. Peak areas were calibrated with an external standard myricitrin. (D) Chemical structures of myricitrin-like components. |
