Fig. 1

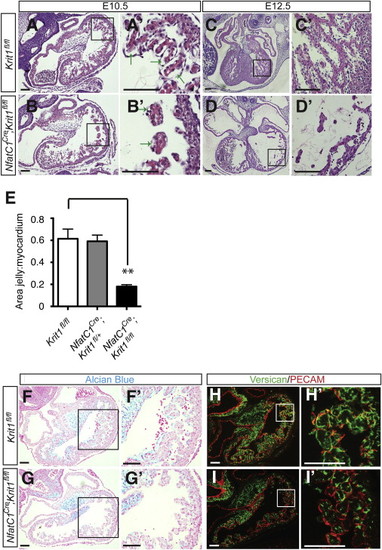

(A–D) Nfatc1^Cre;Krit1^fl/fl hearts exhibit thinned myocardium and reduced space between endocardial and myocardial cells at E10.5 and E12.5. Arrows indicate the endocardial-myocardial gap. (A′-D′) Higher magnification images of the regions boxed in (A)–(D). (E) Ratio of the area occupied by cardiac jelly to that occupied by myocardium in the trabeculae of E10.5 littermate hearts. N = 3 embryos; nine sections analyzed for each group. ∗∗p < 0.01. Error bars represent SEM. (F and G) Reduced Alcian blue staining in Nfatc1^Cre;Krit1^fl/fl hearts at E10.5. (F′ and G′) Higher magnification images of the regions boxed in (F) and (G). (H and I) Immunostaining for versican in Nfatc1^Cre;Krit1^fl/fl and control hearts at E10.5. (H′ and I′) Higher magnification images of the regions boxed in (H) and (I). Scale bars represent 100 μm.
