Fig. 2

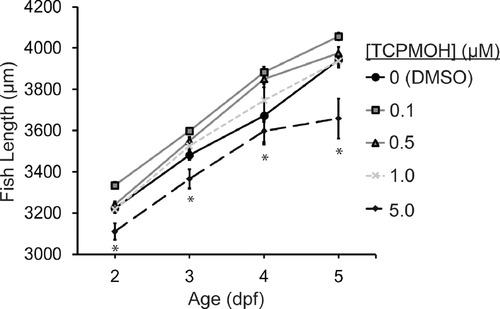

Total anterior-posterior fish length in embryos exposed to 0.01% DMSO, 0.1, 0.5, 1, or 5 µM TCPMOH. Embryos exposed to 5 µM TCPMOH displayed stunted growth compared to controls (p<0.05). No other statistically significant trends were observed (p>0.05). ANOVA with Tukey post-hoc tests were used. Asterisks (*) indicate statistically significant changes from controls (p<0.05). n = 20–38 embryos per exposure group. |
Expression Data
Expression Detail
Antibody Labeling
Phenotype Data
| Fish: | |
|---|---|
| Condition: | |
| Observed In: | |
| Stage Range: | Long-pec to Day 5 |
