Fig. 5

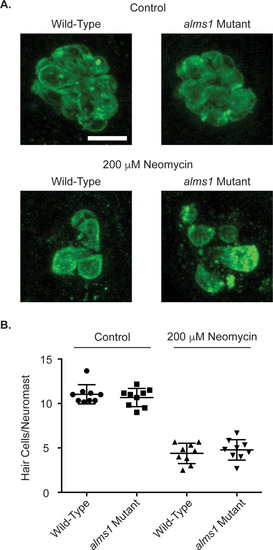

Adult <italic>alms1</italic> mutant fish are not resistant to neomycin-induced hair cell death.

(A) Representative images of neuromasts from control (top) and neomycin treated (bottom) fish from wild-type (left) and alms1 mutant (right) fish. (B) Quantification of hair cells/neuromast either in control conditions or following treatment with 200 μM neomycin. Individual data points are shown along with the mean and standard deviation. There were no significant differences due to genotype (p = 0.3073) or the interaction between genotype and neomycin (p = 0.9784) by two-way ANOVA.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	WT alms1^umd2/umd2
Condition:	chemical treatment by environment: neomycin
Observed In:	neuromast hair cell
Stage:	Adult
