FIGURE

Figure 4

ID
ZDB-FIG-210409-18
Publication
Haege et al., 2021 - Identification of Lactate as a Cardiac Protectant by Inhibiting Inflammation and Cardiac Hypertrophy Using a Zebrafish Acute Heart Failure Model
Other Figures
All Figure Page
Back to All Figure Page

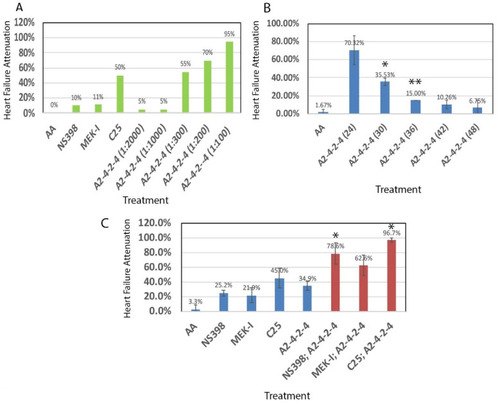

Figure 4

A2-4-2-4 pharmacodynamics. (A) A2-4-2-4 showed the heart failure attenuation activity in a dosage-dependent manner. (B) Time course experiments showed that A2-4-2-4 is required at the early phase of AA-induced AHF. Embryos were treated with AA from 24–72 hpf and A2-4-2-4 added at different times, 24, 30, 36, 42, or 48 hpf. The attenuation of A2-4-2-4 was about 70% when added at 24 hpf but dropped to 35% when added six hours later at 30 hpf (* indicates statistical significance by t-test, p = 0.038; ** between A2-4-2-4 (36) and A2-4-2-4 (30), p = 0.014). A2-4-2-4 lost 90% of the attenuation efficacy when added 24 h later (70% at 24 hpf vs. 7% at 48 hpf). (C) A combinational experiment with sub-dosage of the compounds identified in our lab, 10 μM of NS398, 1:500 dilutions of A2-4-2-4, 5 μM of MEK-I, 2 μM of C25, showed a possible synergistic effect between A2-4-2-4 and NS398, comparing the attenuation of double treatment by NS398; A2-4-2-4 (78.6%) with that of lone NS398 (25.2%) or A2-4-2-4 (34.9%) treatment. (* indicates the statistical significance by t-test, p < 0.05). Similarly, the data suggest a possible synergistic effect between A2-4-2-4 and C25 (* indicates statistical significance by t-test, p < 0.05 between the double versus single treatments) but an additive effect between A2-4-2-4 and MEK-I.

Expression Data

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Condition:
Observed In:
Stage: Protruding-mouth

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Pharmaceuticals (Basel)
