Fig. 7

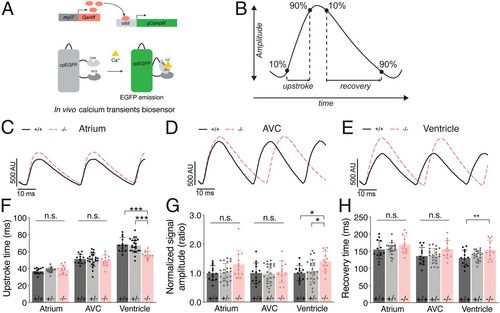

Ca²⁺ transients are prolonged in tmem161b zebrafish mutants. (A) Schematic of the GCaMP6f biosensor used to measure in vivo, cardiomyocyte-specific Ca²⁺ transients. (B) Ca²⁺ transient parameters. (C?E) Representative overlaid Ca²⁺ transients from the (C) atrium, (D) AVC, and (E) ventricle of tmem161b+/+ and tmem161b^?/? embryos. (F?H) Ca²⁺ transient parameters in 3 dpf tmem161b^+/+, tmem161b^+/?, and tmem161b^?/? embryos. (F) Transient upstroke time, showing a faster upstroke in the ventricle of tmem161b^?/? embryos. (G) Normalized GCaMP6f signal amplitude, demonstrating a higher ventricular Ca²⁺ transient amplitude in tmem161b^?/?. (H) Ca²⁺ recovery time, demonstrating a slower reuptake/efflux of Ca²⁺ in tmem161b^?/? ventricles (mean � SD; n = 12 to 23; *P < 0.05, **P ? 0.01, ***P ? 0.001; n.s., nonsignificant.
