Figure 4

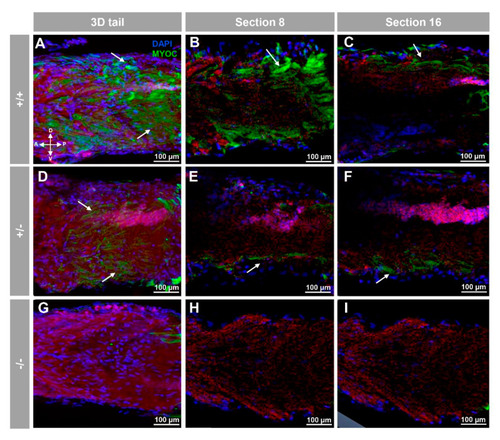

Fluorescent whole-mount immunohistochemical detection of myoc in the tail of zebrafish embryos (96hpf). Wild-type (A?C), heterozygous (D?F) and homozygous (G?I) myoc mutant embryos were incubated with a chicken anti-myocilin (TNT) primary antibody and a Cy2-conjugated goat anti-chicken IgY secondary antibody. Three-dimensional reconstruction from z-stack scanned confocal microscopy images (A,D,G) of the tail. Sections (92 ?m) 8 (B,E,H) and 16 (C,F,I) were selected from z-stack images to show the precise localisation of the green signal in the tail?s skin (arrow) (A?C). Blue: DAPI nuclear staining. Green: Cy2-conjugated goat anti-chicken IgY secondary antibody. Red: tissue autofluorescence. The cross indicates the position of the embryonic axes (D: dorsal; P: posterior; V: ventral; A: anterior). The images are representative of the results observed in ten embryos. The negative controls are shown in Figure S3G?I.

Expression Data

Antibody:	Ab1-myoc
Fish:	AB myoc^ucl2/ucl2 (AB) myoc^ucl2/+ (AB)
Anatomical Terms:	muscle posterior side post-vent region integument
Stage:	Day 4

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	myoc^ucl2/ucl2 (AB) myoc^ucl2/+ (AB)
Observed In:	muscle posterior side post-vent region integument
Stage:	Day 4

Phenotype Detail
