FIGURE 5

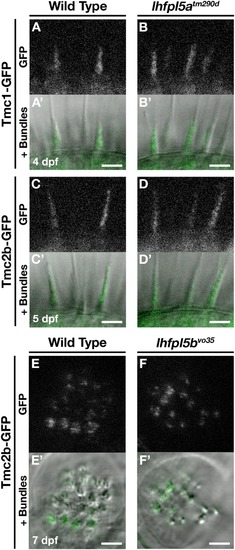

Tmc proteins do not require Lhfpl5a or Lhfpl5b for localization to the stereocilia of zebrafish hair cells. (A–D’) Representative images of Tmc1-GFP (vo27Tg) or Tmc2b-GFP (vo28Tg) in the lateral cristae of wild type (A,A’,C,C’) and lhfpl5a^tm290d(B,B’,D,D’) larvae. The GFP-only channel is shown in (A–D) and overlaid with a light image of the bundles in (A’–D’). (E–F’) Representative images of Tmc2b-GFP (vo28Tg) in the neuromasts of wild type (E,E’) and lhfpl5b^vo35(F,F’) larvae. The GFP-only channel is shown in (E,F) and overlaid with a light image of the bundles in (E’,F’). Scale bars = 3 μm in all panels.

Expression Data

Gene:	EGFP
Fish:	vo27Tg vo28Tg lhfpl5a^{tm290d/tm290d}; vo27Tg lhfpl5a^{tm290d/tm290d}; vo28Tg lhfpl5b^vo35/vo35; vo28Tg
Anatomical Terms:	lateral crista stereocilium neuromast hair cell stereocilium
Stage Range:	Day 4 to Days 7-13

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail
