Fig. 6

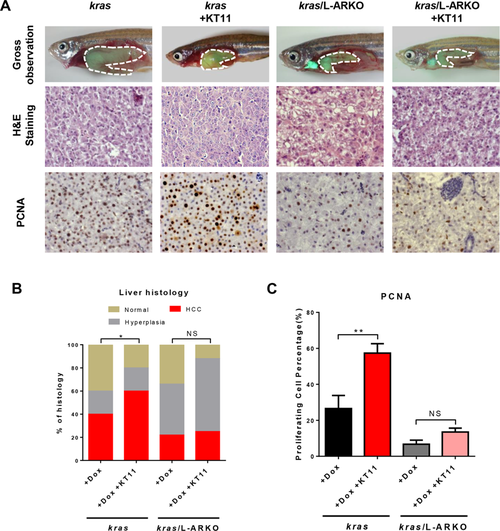

Lack of response to KT11 in kras/L-ARKO zebrafish during liver tumor progression. (A) Representative images of the gross observations (top), histology images (middle) and PCNA staining (bottom) from male kras and kras/L-ARKO zebrafish treated with Dox with or without KT11. Livers are outlined by a dashed line. (B) Quantitative analyses of histological phenotypes. (C) Quantification of liver cell proliferation based on PCNA staining. Statistical significance between the krasand kras/L-ARKO groups for the incidence of different tumor types: *p < 0.05; **p < 0.01; NS: not significant.
|
Expression Data
Expression Detail
Antibody Labeling
Phenotype Data
Fish: | |
---|---|
Conditions: | |
Observed In: | |
Stage: | Adult |
Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Sci. Rep.
