Fig. 7

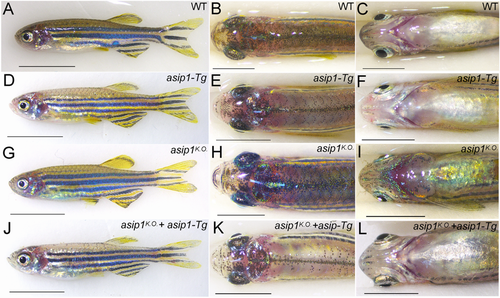

Functional rescue of CRISPR-mediated asip1 mutation. Lateral (A,D,G,J), dorsal (B,E,H,K) and ventral-belly (C,F,I,L) views of 160 dpf WT, asip1-Tg, asip1^K.O., and asip1^K.O; asip1-Tg zebrafish. The pigment pattern of WT zebrafish shows (A) normal striped pattern, (B) dark dorsum and (C) light belly. The pigment pattern of asip1-Tg fish shows (D) almost normal striped pattern, although dark stripe 2D??? is rather thinner???, (E) hypopigmented dorsum and (F) light belly. The pigment pattern of asip1^K.O. fish shows (F) almost normal striped pattern, but with dark stripes 2 V and 3 V more developed than WT fish, (H) pigmented dorsum similar to WT and (I) hyperpigmented belly compared to WT. The asip1^K.O + asip1 − Tg phenotype shows a phenotype similar to the asip1 − Tg zebrafish, except that dark stripe 2D is more prominent. Scale bar: 5 mm.
