Fig. S1

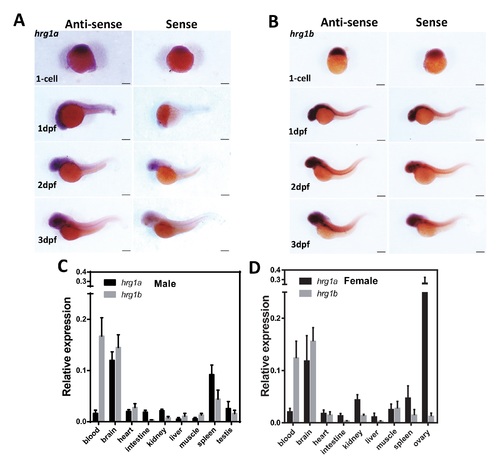

Expression of hrg1a and hrg1b in embryonic and adult zebrafish.

(A-B) WISH of hrg1a and hrg1b expression in embryos at different stages. Anterior is to the left. Anti-sense probe is used to detect mRNA expression; sense probe is shown to indicate background staining. Scale bar: 200μm. (C-D) qRT-PCR on hrg1a and hrg1b in dissected adult zebrafish tissues from male and female. 3 male or female fish were dissected as one cohort, each gender had 3 cohorts as biological replicates. Expression level was normalized to ef1α.
