FIGURE

Fig. 6

ID
ZDB-FIG-181116-11
Publication
Park et al., 2018 - CCAAT/enhancer-binding protein-β functions as a negative regulator of Wnt/β-catenin signaling through activation of AXIN1 gene expression
Other Figures
All Figure Page
Back to All Figure Page

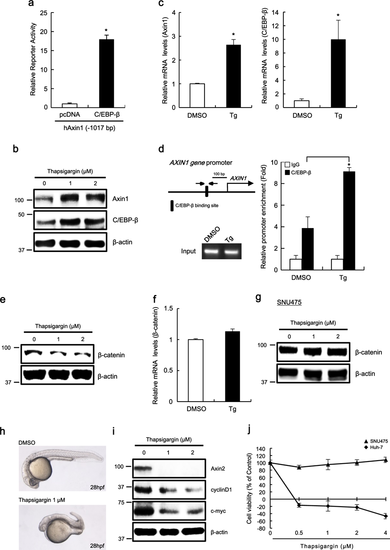

Fig. 6

a Huh-7 cells were transfected with hAxin-1017 and C/EBP-β expression plasmid and pRL-CMV plasmid. After 48 h, luciferase activities were measured. b–f Huh-7 cells were incubated with the vehicle (DMSO) or thapsigargin (1 μM or indicated concentration) for 15 h. Whole-cell lysates prepared from Huh-7 cells were subjected to western blot analysis against the indicated antibodies (b). Real-time PCR for Axin1 and C/EBP-β were performed using total RNA prepared from Huh-7 cells (c). Chromatin samples were prepared and subsequently subjected to ChIP analysis against the anti-C/EBP-β antibody or control IgG. The amounts of immunoprecipitated C/EBP-β promoter regions were quantified by real-time PCR (d). Cytosolic proteins were subjected to western blot analysis against the β-catenin antibody (e) and total RNA was subjected to real-time PCR for β-catenin expression (f). g SNU475 cells were treated for 15 h with thapsigargin and cytosolic proteins were subsequently analyzed by western blot analysis against the β-catenin antibody. h Effect of thapsigargin on zebrafish embryonic development. i Lysates prepared from Huh-7 cells treated for 15 h with the vehicle (DMSO) or thapsigargin (1 μM) were subjected to western blot analysis against the indicated antibodies. j Effect of thapsigargin on hepatoma cell growth. In a–c, d, f, and j, results are the average of three experiments, and bars indicate standard deviations. *P < 0.05, compared with the control

Expression Data

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Condition:
Observed In:
Stage: Prim-5

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Cell Death Dis.
