Fig. 5
- ID
- ZDB-FIG-181108-15
- Publication
- Ranski et al., 2018 - Characterization of retinal regeneration in adult zebrafish following multiple rounds of phototoxic lesion
- Other Figures
- All Figure Page
- Back to All Figure Page

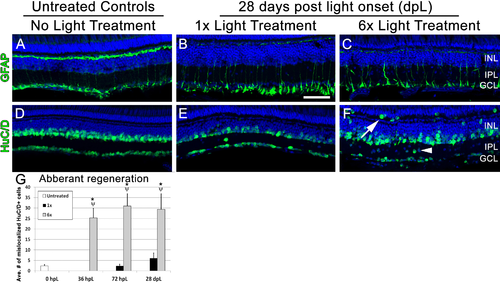

Following multiple rounds of regeneration, retinas exhibit abnormal localization of inner retinal neurons.(A–F) Retinal sections collected at 28 dpL immunolabeled with anti-GFAP and anti-HuC/D to show Müller glia and inner retinal neurons, respectively, in untreated control (No Light Treatment), experimental control (1×Light Treatment) and experimental retinas (1×Light Treatment). Nuclei are stained in blue with TO-PRO-3. (A–C) Müller glia are immunolabeled with anti-GFAP. (D–F) Amacrine and ganglion cells are immunolabeled with anti-HuC/D. Mis-localization of HuC/D-positive cells were observed in the inner plexiform layer (IPL; arrowhead) and outer retina (arrow). (G) Quantification of average numbers of HuC/D-positive cells found in the IPL and outer retina (n = 5 per group). Cells were counted over a linear distance of 300 μm on the central dorsal retina. Asterisk indicates significantly different from 0 h control; Psi symbol indicates significantly different from 1×retinas (p < 0.05). Scale bar represents 25 μm. |
Fish: | |
---|---|
Condition: | |
Observed In: | |
Stage: | Adult |
