FIGURE

Fig. 3

ID

ZDB-FIG-180712-81

Publication

Kelu et al., 2018 - TPC2-mediated Ca²⁺ signaling is required for the establishment of synchronized activity in developing zebrafish primary motor neurons.

Other Figures

All Figure Page

Back to All Figure Page

Fig. 3

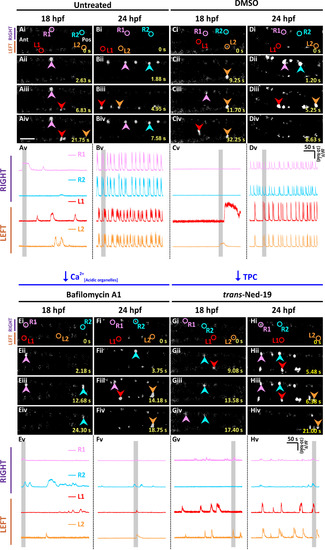

Effect of depleting the acidic Ca²⁺ stores and antagonizing TPCs on the spontaneous Ca²⁺ activity of the CaPs in SAIGFF213A;UAS:GCaMP7a embryos at ~18 hpf and ~24 hpf. Embryos were (A, B) untreated, or (C-H) they were treated with: (C,D) 1% DMSO, (E,F) 1 µM bafilomycin A1, or (G, H) 250 µM trans-ned-19. Drug treatments started at ~ 17 hpf, and finished at either (A,C,E,G) ~ 18 hpf or (B,D,F,H) ~ 24 hpf. (Ai-Hiv) Time-lapse fluorescence images, and (Av-Hv) line graphs as described in Fig. 1.

Expression Data

Gene:	GCaMP
Fish:	nksaigff213aGt; zf415Tg
Conditions:	chemical treatment by environment: bafilomycin A1 chemical treatment by environment: trans-Ned 19
Anatomical Term:	CaP motoneuron
Stage Range:	14-19 somites to Prim-5

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	nksaigff213aGt; zf415Tg
Conditions:	chemical treatment by environment: bafilomycin A1 chemical treatment by environment: trans-Ned 19
Observed In:	CaP motoneuron release of sequestered calcium ion into cytosol
Stage:	Prim-5

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 438(1), Kelu, J.J., Webb, S.E., Galione, A., Miller, A.L., TPC2-mediated Ca²⁺ signaling is required for the establishment of synchronized activity in developing zebrafish primary motor neurons., 57-68, Copyright (2018) with permission from Elsevier. Full text @ Dev. Biol.
